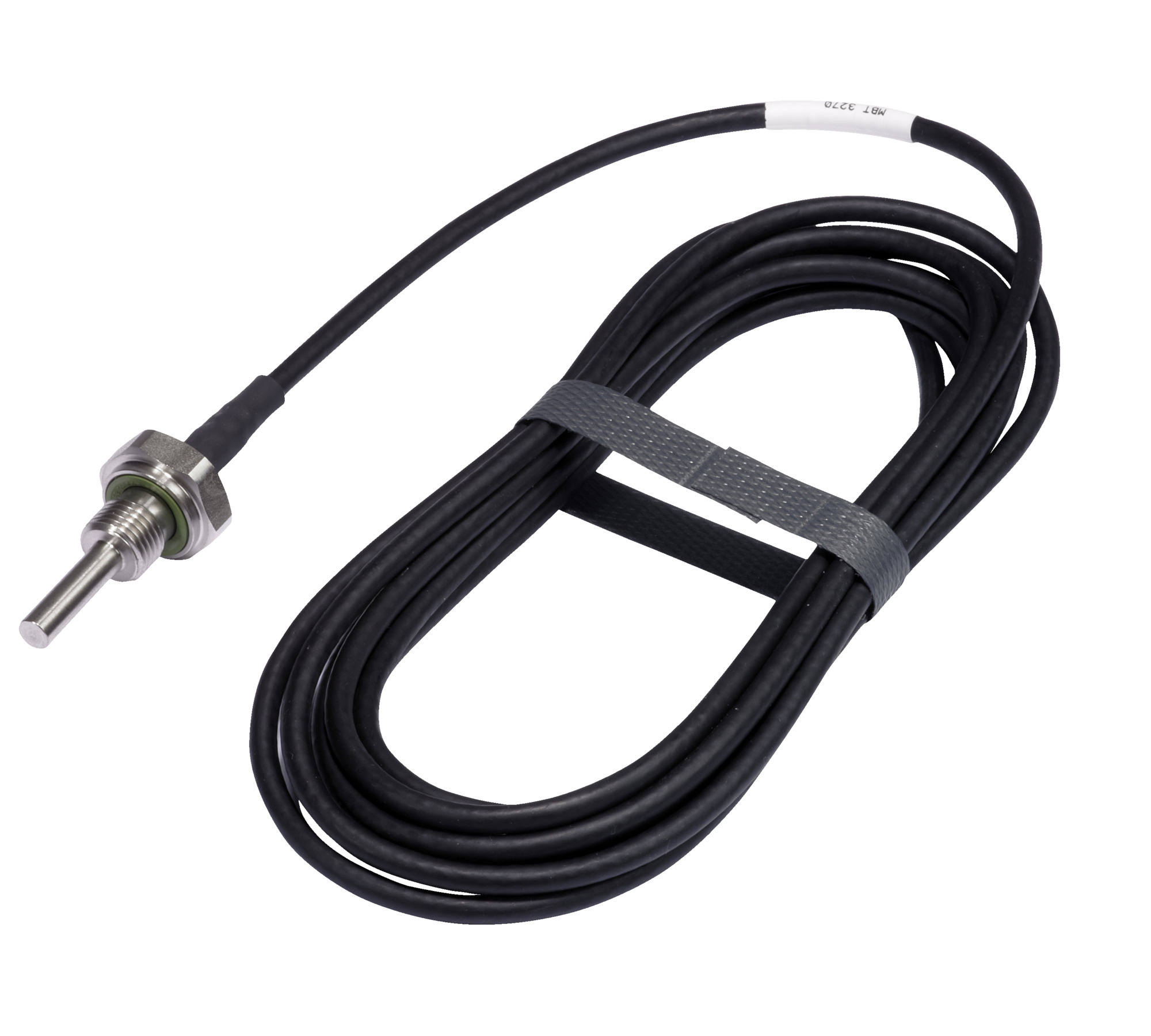

DANFOSS 084Z3194 MBT 3270 35MM G1/4 TEMPERATURE SENSOR

DANFOSS Temperature sensor, MBT 3270, 35 mm, G,1/4

084Z3194

Temperature range [°C]: -50 - 150, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316, Electrical connection: Cable, Electrical connection size: 3 wire

Product details

Gross weight	0.161 Kg
Net weight	0.158 Kg

Volume	0.45 Liter
EAN	5702423263868

Ambient temperature max. [°C]	125 °C
Ambient temperature max. [°F]	257 °F
Cable length [in]	118.11 in
Cable length [m]	3 m
Cable tempr. range [°C] [max]	125 °C
Cable tempr. range [°C] [min]	-40 °C
Cable tempr. range [°F] [max]	257 °F
Cable tempr. range [°F] [min]	-40 °F
Cable type	Polyolefine, screened
Connection material	AISI 316L
Connection standard	ISO 228
Connection type	G
Electrical connection	Cable
Electrical connection size	3 wire
Enclosure rating IP	IP54
In scope of WEEE and contain batteries	No
Insertion length [in]	1.38 in
Insertion length [mm]	35 mm
Insertion type	Fixed
Output signal	Ohm
Packing format	Multi pack
Process connection Male/Female	Male
Process connection material	AISI 303
Process connection size	1/4

Process connection standard	ISO 228-1-A
Process connection type	G
Product group	Sensors
Product Name Description	Temperature sensor
Protection tube diameter [in]	0.24 in
Protection tube diameter [mm]	6.2 mm
Protection tube material	AISI 316
Quantity per packing format	10 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6)
SCIP dossier no.	4562dfd6-7b4b-4298-811a-8ce9624f4579
Sensor elem. resistance [Ohm]	100
Sensor element [pc]	1 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Sensor Insert	Fixed
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	302 °F
Temperature range [°F] [min]	-58 °F
Type	MBT 3270
Type designation	MBT 3270-00001-035-00017-300
Wires [pcs]	3 pc
