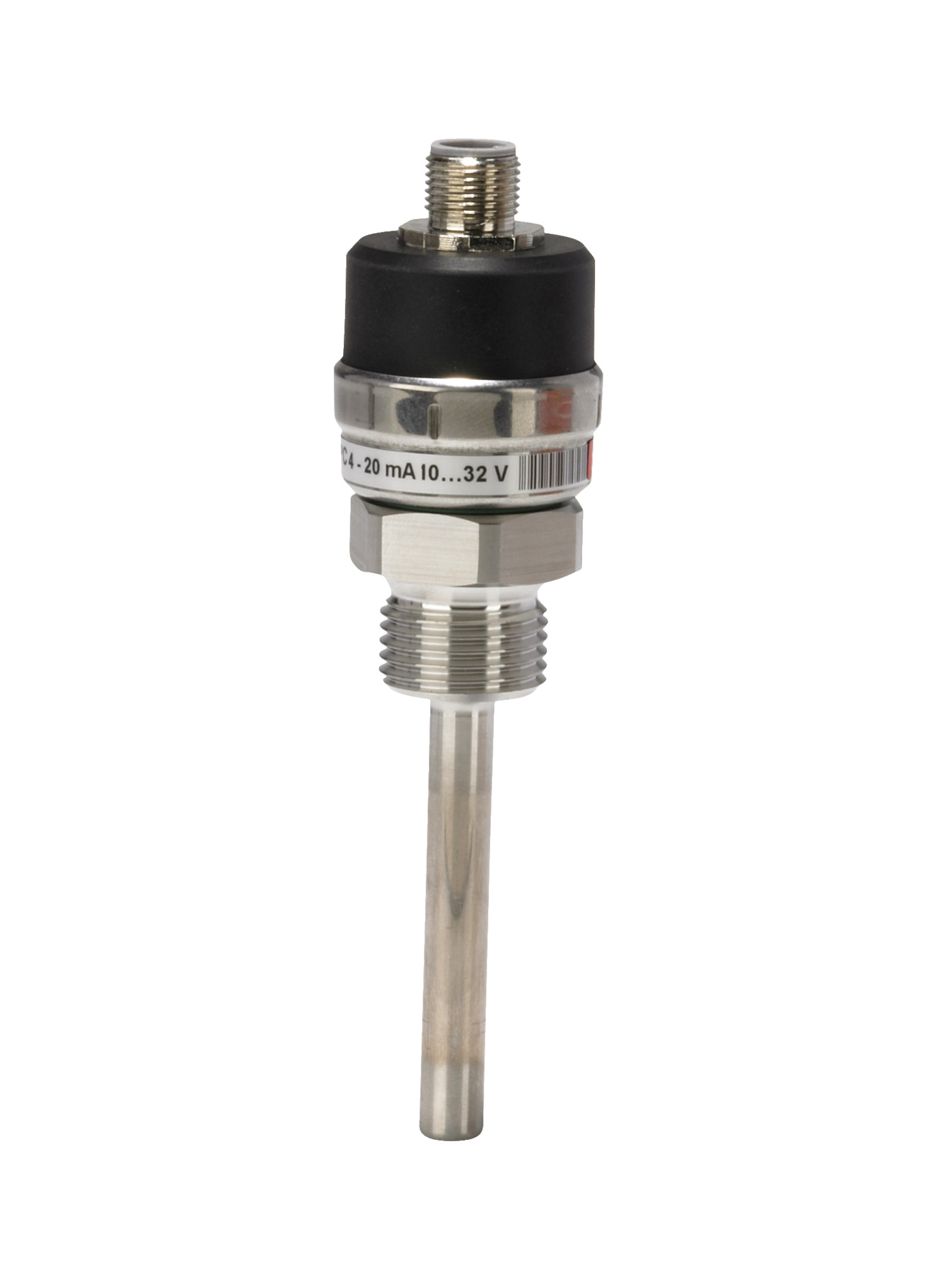

DANFOSS 084Z4173 MBT 3560 40MM M14X1.5 4-20Ma TEMPERATURE TRANSMITTER

084Z4173

Temperature range [°C]: -50 - 200, Electrical connection: M12 x 1, Electrical connection size: 4 pin, Protection tube material: AISI 316 Ti

Product details

Gross weight	0.147 Kg
Net weight	0.098 Kg

Volume	0.718 Liter
EAN	5702428887601

Ambient temperature max. [°C]	85 °C
Ambient temperature max. [°F]	185 °F
Connection material	Stainless steel
Connection standard	ISO 228
Connection type	M
Electrical conn. Male/Female	Male
Electrical connection	M12 x 1
Electrical connection size	4 pin
Electrical connection standard	EN 60947-5-2
Enclosure rating IP	IP67
Extension length [in]	1.3 in
Extension length [mm]	33 mm
In scope of WEEE and contain batteries	No
Insertion length [in]	1.57 in
Insertion length [mm]	40 mm
Insertion type	Fixed
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Packing format	Multi pack
Process connection Male/Female	Male
Process connection material	Stainless steel
Process connection size	14x1.5
Process connection standard	ISO 228-1-A
Process connection type	M
Product group	Sensors

Product Name Description	Temperature sensor
Protection tube diameter [in]	0.31 in
Protection tube diameter [mm]	8 mm
Protection tube material	AISI 316 Ti
Quantity per packing format	13 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	8127e7d9-3431-4421-a02a-bab746bc2e4f
SCIP dossier product name	Sensor MBT 3560
Sensor element tolerance	± 1% FS
Sensor Insert	Fixed
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [min]	10 V
Supply voltage [V] DC [min]	10 V
Temperature range [°C] [max]	200 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	392 °F
Temperature range [°F] [min]	-58 °F
Transmitter setting range [°C] [max]	150 °C
Transmitter setting range [°C] [min]	0 °C
Transmitter setting range [°F] [max]	302 °F
Transmitter setting range [°F] [min]	32 °F
Transmitter type	Integrated
Type	MBT 3560
Type designation	MBT 3560-0001-0040-6B-115
