DANFOSS 084Z3069 MBT 5250 50MM UNF,3/4-16 MA SICAKLIK SENSÖRÜ

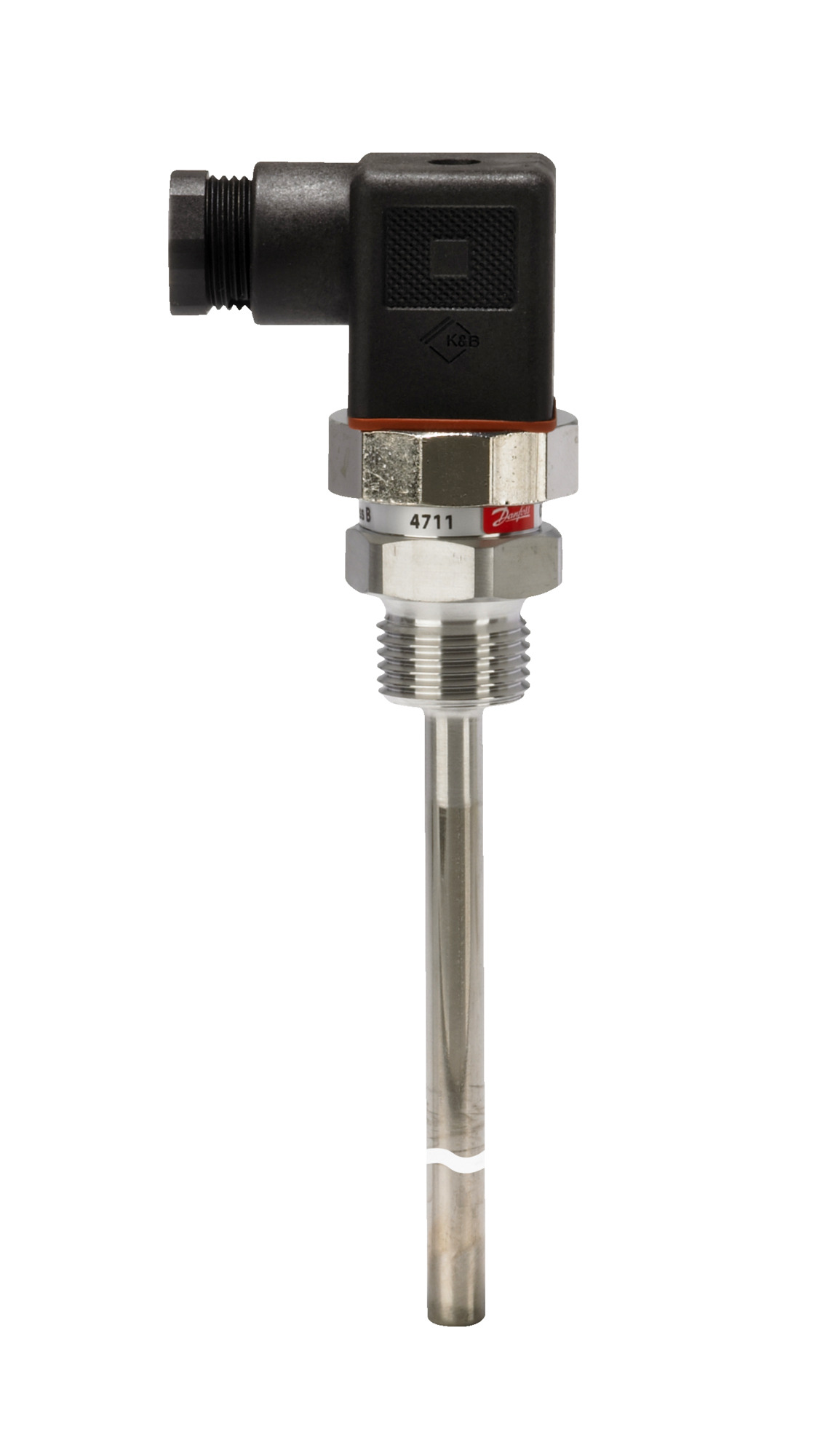

DANFOSS Temperature sensor, MBT 5250, 50 mm, UNF,3/4-16

084Z3069

Temperature range [°C]: -50 - 200, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: Plug, Electrical connection size: Pg 13.5

Product details

Gross weight	0.147 Kg
Net weight	0.143 Kg

Volume	0.165 Liter
EAN	5702423223640

Ambient temperature max. [°C]	125 °C
Ambient temperature max. [°F]	257 °F
Connection material	Stainless steel
Connection standard	ANSI/ASME B1.1
Connection type	UNF
Electrical conn. Male/Female	Male and Female
Electrical connection	Plug
Electrical connection size	Pg 13.5
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
In scope of WEEE and contain batteries	No
Insertion length [in]	1.97 in
Insertion length [mm]	50 mm
Insertion type	Fixed
Number of terminals [pcs]	3 pc
Output signal	Ohm
Packing format	Multi pack
Process connection material	Stainless steel
Process connection size	3/4-16
Process connection standard	ASME B1.1
Process connection type	UNF

Product group	Sensors
Product Name Description	Temperature sensor
Protection tube diameter [in]	0.31 in
Protection tube diameter [mm]	8 mm
Protection tube material	AISI 316 Ti
Quantity per packing format	20 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6)
SCIP dossier no.	1741c763-fa54-4cb9-973c-52e51e4079b9
Sensor elem. resistance [Ohm]	100
Sensor element [pc]	1 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Sensor Insert	Exchangeable
Temperature range [°C] [max]	200 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	392 °F
Temperature range [°F] [min]	-58 °F
Type	MBT 5250
Type designation	MBT 5250-0000-050-3E0
Wires [pcs]	2 pc
