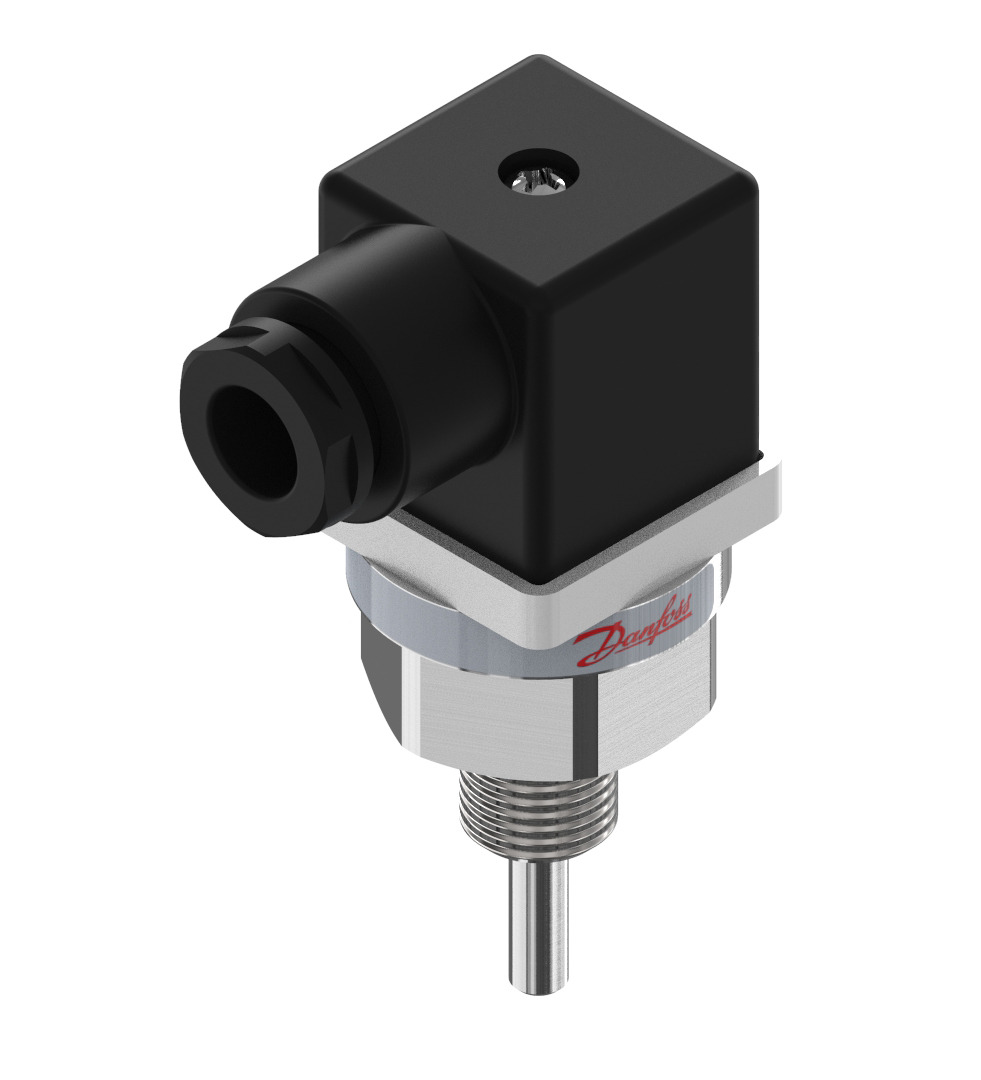

DANFOSS 084Z2443 MBT 3270 30MM G1/4 TEMPERATURE SENSOR

DANFOSS Temperature sensor, MBT 3270, 30 mm, G,1/4

084Z2443

Temperature range [°C]: -50 - 120, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: Plug, Electrical connection size: Pg 11

Product details

Gross weight	0.095 Kg
Net weight	0.091 Kg

Volume	0.149 Liter
EAN	5702428978682

Ambient temperature max. [°C]	125 °C
Ambient temperature max. [°F]	257 °F
Connection material	AISI 316 Ti
Connection standard	ISO 228
Connection type	G
Electrical conn. Male/Female	Male and Female
Electrical connection	Plug
Electrical connection size	Pg 11
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP54
In scope of WEEE and contain batteries	No
Insertion length [in]	1.18 in
Insertion length [mm]	30 mm
Insertion type	Fixed
Number of terminals [pcs]	3 pc
Output signal	Ohm
Packing format	Multi pack
Process connection Male/Female	Male
Process connection material	AISI 316 Ti
Process connection size	1/4
Process connection standard	ISO 228-1-A
Process connection type	G

Product group	Sensors
Product Name Description	Temperature sensor
Protection tube diameter [in]	0.24 in
Protection tube diameter [mm]	6 mm
Protection tube material	AISI 316 Ti
Quantity per packing format	20 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6)
SCIP dossier no.	4562dfd6-7b4b-4298-811a-8ce9624f4579
Sensor elem. resistance [Ohm]	100
Sensor element [pc]	1 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Sensor Insert	Fixed
Temperature range [°C] [max]	120 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	248 °F
Temperature range [°F] [min]	-58 °F
Type	MBT 3270
Type designation	MBT 3270-30001-030-00730-000
Wires [pcs]	2 pc
