| Tip | Bağlantı | Kaynaklı 90°C | Kaynaklı Düz | Rekorlu |
| TE 5 | 1/2" x 5/8" | 067B4009 | 067B4007 | 067B4013 |
| 1/2" x 7/8" | 067B4010 | 067B4008 | ||
| 5/8" x 7/8" | 067B4011 | 067B4032 | ||
| 7/8"x11/8" | 067B4034 | 067B4033 | ||
| TE 12 | 7/8" X 11/8" | 067B4023 | 067B4021 | |
| TE 20 | 7/8" X 11/8" | 067B4023 | 067B4021 | |
| TE 55 | 11/8" X1 3/8" | 067G4004 | 067G4003 |
Product details
| Gross weight | 0.335 Kg |
| Net weight | 0.313 Kg |
| Volume | 0.3 Liter |
| EAN | 5702428321174 |
| Approval | LLC CDC TYSK |
| Balanced port [Yes/No] | No |
| Body material | Brass |
| China RoHS compliance | Out of scope |
| Connection material | Brass |
| Direction | Angleway |
| EU RoHS compliance | Out of scope |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Flare |
| Inlet size [in] | 1/2 in |
| Inlet size [mm] | 12 mm |
| Outlet connection type | Flare |
| Outlet size [in] | 5/8 in |
| Outlet size [mm] | 16 mm |
| Packing format | Multi pack |
| Parts included | Screws Washers |
| Parts Program name | TE 5 |
| Product accessories | TXV accessories |
| Product group | Expansion valves |

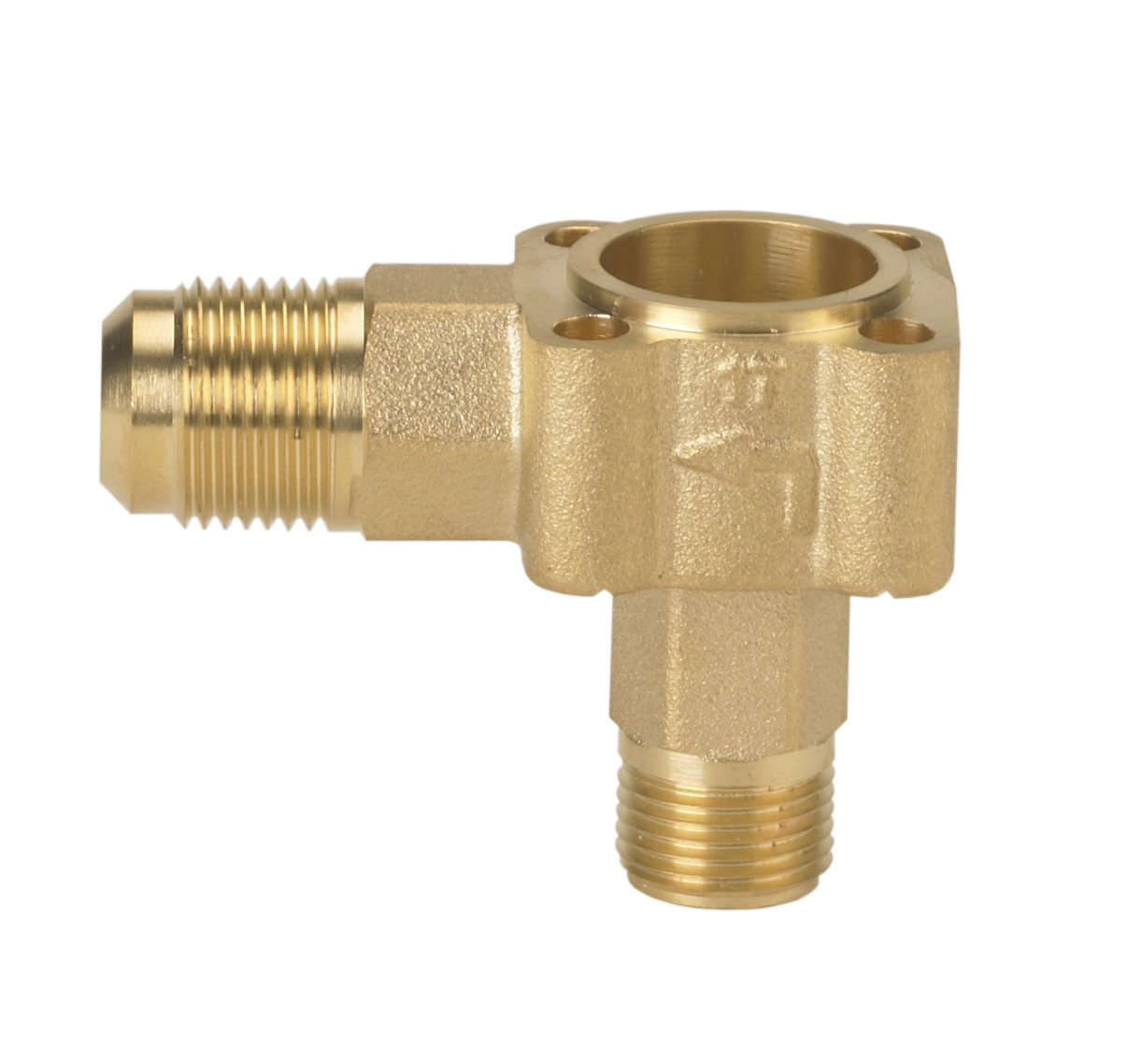

| Product Name Description | Valve body for expansion valve |
| Quantity per packing format | 32 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 7a4717a2-7803-4273-9d94-59ccfb927c1e |
| SCIP dossier product name | TE |
| Serviceable | TXV spare parts |
| Type | TEH |
| UK RoHS compliance | Out of scope |
| Used for product | TE 5 |
