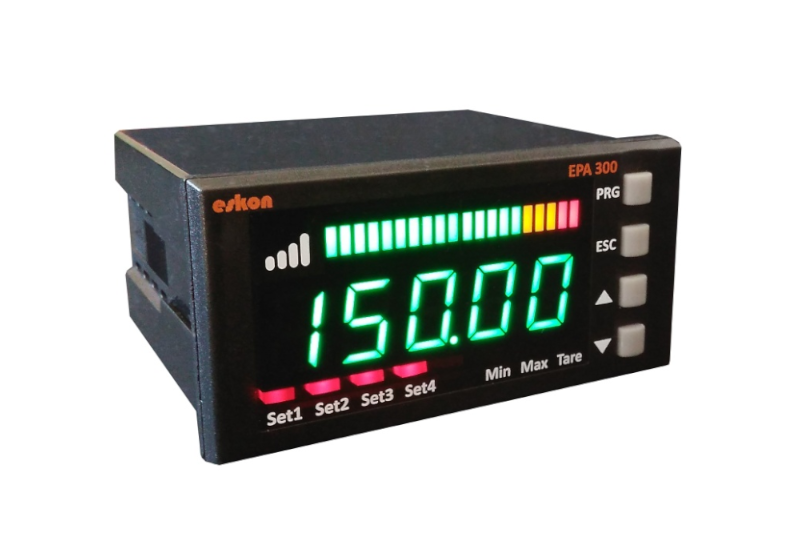

EPA 300 Process Control Device

General Description

4 different analog input functions in one device
2 relay outputs that can be set in different functions (4 optional)
RS-232, RS-485, USB or CANopen communication options
Analog output options
24 VAC/DC or 85-265 VAC supply option
Single line 5 digit display

Technicial Specifications

• 4 Different analog input functions in one device
• Load Cell connection possible
• RS-232, RS-485, USB or CANopen serial communication options
• 4 relay outputs that can be set in different functions
• Analog output option (0-10V, 0-5V, 0.5-4.5V, 4-20mA, 0-20mA)
• Reversible analog output (e.g. 10-0 V, 20-0 mA)
• High sampling rate: 3.5 kHz
• Conversion of analog signals (0-10 V, 4-20 mA, 0-20 mA, Potentiometric, etc.) into CANopen signals
• Conversion of CANopen signals to analog signals (0-10 V, 4-20 mA, 0-20 mA)
• Fast and multi-parameter configuration via USB
• Small and compact design
• Easy and user-friendly interface
• Tare function
• Menu hiding or password protection
