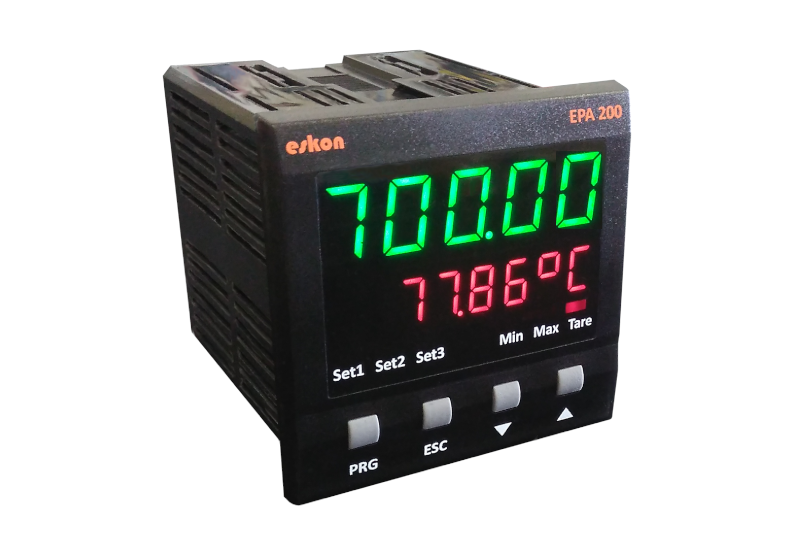

EPA 200 Process Control Device

General Description

Simultaneous process and temperature measurement
RS-232, RS-485, USB or CANopen communication options
Analog output options
2 relay outputs (3 optional) that can be set in different functions
24 VAC/DC or 85-265 VAC supply option
2 lines 5 digit display

Technicial Specifications

• Process and temperature measurement at the same time
• Two lines display; The first line shows the analog process value received from the sensor, and the second line shows the temperature information received from the thermocouple.
• PT100, PT1000 or Thermocouple can be connected
• K, J, N, R, S, T, E, and B type thermocouples can be selected from the menu
• Can display temperature in °C, °F and K
• Load Cell can also be connected
• RS-232, RS-485, USB or CANopen option
• 3 relay outputs that can be set in different functions
• High sampling rate: 3.5 kHz
• Conversion of analog signals (0-10 V, 4-20 mA, 0-20 mA, Potentiometric, etc.) into CANopen signals
• Conversion of CANopen signals to analog signals (0-10 V, 4-20 mA, 0-20 mA)
• Reversible analog output (10-0 V, 20-0 mA)
• Fast and multi-parameter configuration via USB
• Easy and user-friendly interface
• Tare function
• Menu hiding or password protection
