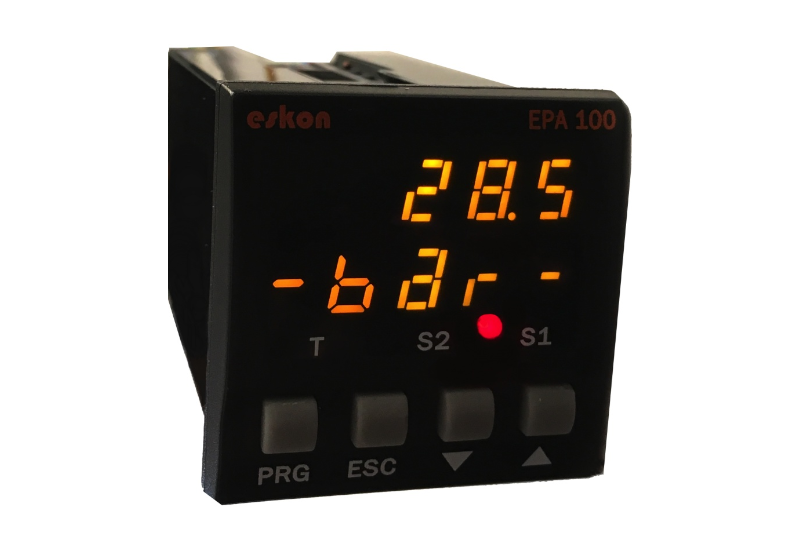

EPA 100 Process Control Device

General Description

Different analog input functions
RS-232, RS-485, USB or CANopen communication options
Analog output options
2 adjustable relay outputs
24 VAC/DC or 85-265 VAC supply option
2 lines 5 digit display

Technicial Specifications

4 Different analog input functions in one device
Two lines display; The first line can show the analog process value received from the sensor, and the second line can show the unit or relay set value for the measured value.
Load Cell can also be connected
RS-232, RS-485, USB or CANopen serial communication options
2 relay outputs that can be set in different functions
Analog output option (0-10V, 0-5V, 0.5-4.5V, 4-20mA, 0-20mA)
Reversible analog output (e.g. 10-0 V, 20-0 mA)
High sampling rate: 3.5 kHz
Conversion of analog signals (0-10 V, 4-20 mA, 0-20 mA, Potentiometric, etc.) into CANopen signals
Conversion of CANopen signals to analog signals (0-10 V, 4-20 mA, 0-20 mA)
Fast and multi-parameter configuration via USB
Small and compact design
Easy and user-friendly interface
Tare function
Menu hiding or password protection
