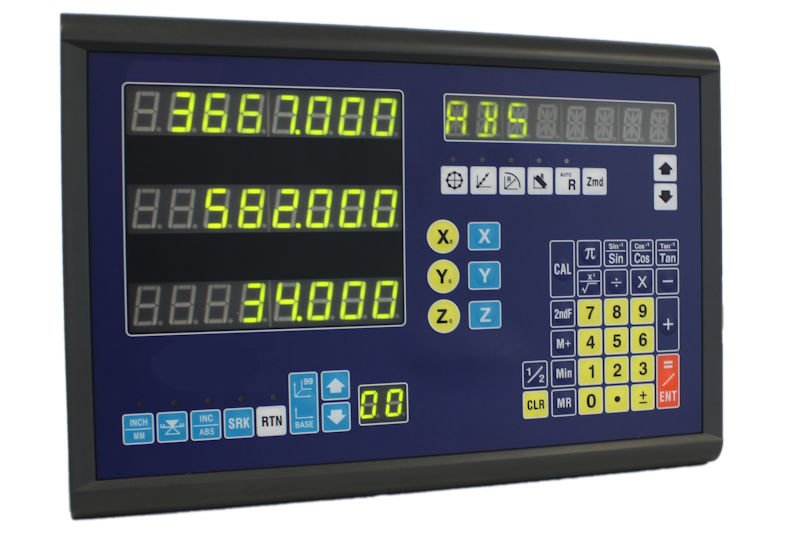

Digital Coordinate Measuring Systems Indicator

General Information

• 2, 3 or 4 axis options
• Universal functions
• Data transmission via RS232 port, optional relay output
• 1000 coordinate memory
• 8 + 1 digit display
• 5 different language options
• Easy assembling
• 2, 3 or 4 axis options
• Universal Functions: Turning, Milling, Bohrwerk, Erosion, Grinding
• Angle measurement
• Data transmission via RS232 Port, optional relay output
• User defined resolution option
• 8-digit digit + 1 sign digit
• Aluminum injection case, easy assembly
• 1000 coordinate memory
• 1000 tool memory, very useful for lathes
• Linear and partial error correction
• D-sub 9 pin socket
• 5 different language options: Turkish, English, German, Spanish, Portuguese

Technicial Specifications

• Number of Axes 2, 3, 4
• Display 8 Digits +1 Sign Digits, Green, Moving (-) Marked
• Display Sensitivity 0.1 µm, 0.2 µm, 0.5 µm, 1 µm, 5 µm, 10 µm, 25 µm or User can define according to his own request.
• Input Signal Optional Push Pull or TTL A, B, Z (Line Driver A, B, Z, / A, / B, / Z) Incremental Encoder Signals
• Weight 2.7 Kg
• Supply Voltage 85 - 265 VAC 50/60 Hz. or 24 VAC / VDC
• Storage Temperature - 25 ~ 65 ° C
• Working Temperature -10 ~ 45 ° C
• Relative Humidity 20% - 85% Non-condensing
• Dimensions (H x W x D) 202mm x 320mm x 84mm
• Device Body Aluminum Injection Body
• Measurement Limits - 99999.999 mm ~ 99999.999 mm

Usage areas

• All metalworking machines
• Lathe
• Milling
• Bohrwerk
• EDM
• Grinding Machines
