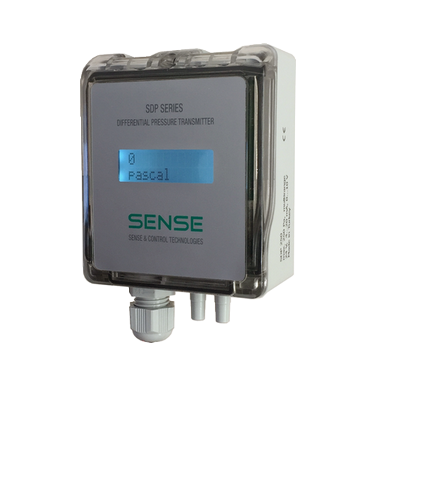

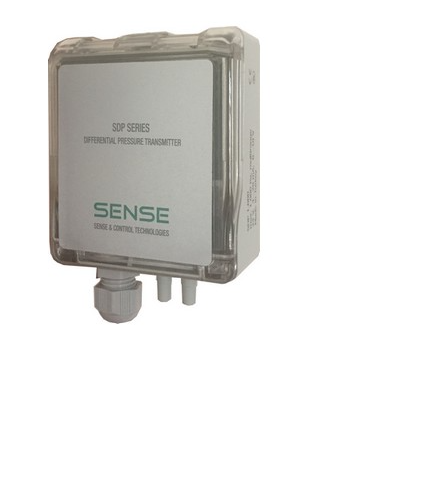

Differential Pressure Transmitter with Indicator

General features

• Calibrated and temperature compensated measurement
• Output types: 4-20mA, 0-10V, 0-5V, 2-10V, 1-5V
• Simple and fast assembly
• LCD screen, 2 × 12 characters
• 2 universal inputs
• Modbus - RS485 port
• Relay output

Scope of application

• HVAC Applications
• Fan controls
• Air speed control
• Low pressure measurement
• Clean room measurements

Ranges and Sub Ranges

• SDP.1--, ± 250 Pa: ± 25, ± 50, ± 100, ± 250, 25, 50, 100, 250 Pa
• SDP.2--, 1.000 Pa: 100, 200, 300, 400, 500, 600, 750, 1.000 Pa
• SDP.3--, ± 1.000 Pa: ± 250, ± 500, ± 750, ± 1.000, 250, 500, 750, 1.000 Pa
• SDP.4--, 2.500 Pa: 100, 250, 500, 750, 1.000, 1.500, 2.000, 2.500 Pa
• SDP.6--, 6,000 Pa, 500, 750, 1,000, 2,000, 3,000, 4,000, 5,000, 6,000 Pa
• SDP.7--, ± 6,000 Pa: ± 1,000, ± 2,000, ± 3,000, ± 6,000, 1,000, 2,000, 3,000, 6,000 Pa
