TRAFAG ECT0.1A 8473 66 5417 05 0000 0000 19 58 61 0...0.1Bar Pressure Transmitter
TRAFAG ECT0.16A 8473 67 5417 05 0000 0000 19 58 61 0...0.16Bar Pressure Transmitter
TRAFAG ECT0.2A 8473 68 5417 05 0000 0000 19 58 61 0...0.2Bar Pressure Transmitter
TRAFAG ECT0.4A 8473 69 5417 05 0000 0000 19 58 61 0...0.4Bar Pressure Transmitter
TRAFAG ECT0.6A 8473 70 5417 05 0000 0000 19 58 61 0...0.6Bar Pressure Transmitter
TRAFAG ECT0.1V 8473 66 5417 05 0000 0000 17 58 61 0...0.1Bar Pressure Transmitter
TRAFAG ECT0.16V 8473 67 5417 05 0000 0000 17 58 61 0...0.16Bar Pressure Transmitter
TRAFAG ECT0.2V 8473 68 5417 05 0000 0000 17 58 61 0...0.2Bar Pressure Transmitter
TRAFAG ECT0.4V 8473 69 5417 05 0000 0000 17 58 61 0...0.4Bar Pressure Transmitter
TRAFAG ECT0.6V 8473 70 5417 05 0000 0000 17 58 61 0...0.6Bar Pressure Transmitter
TRAFAG ECTF0.1A 8473 66 5652 05 0000 0000 19 58 61 0...0.1Bar Pressure Transmitter
TRAFAG ECTF0.16A 8473 67 5652 05 0000 0000 19 58 61 0...0.16Bar Pressure Transmitter
TRAFAG ECTF0.2A 8473 68 5652 05 0000 0000 19 58 61 0...0.2Bar Pressure Transmitter
TRAFAG ECTF0.4A 8473 69 5652 05 0000 0000 19 58 61 0...0.4Bar Pressure Transmitter
TRAFAG ECTF0.6A 8473 70 5652 05 0000 0000 19 58 61 0...0.6Bar Pressure Transmitter
TRAFAG ECTF1.0A 8473 71 5652 05 0000 0000 19 58 61 0...1Bar Pressure Transmitter
TRAFAG ECTF1.6A 8473 73 5652 05 0000 0000 19 58 61 0...1.6Bar Pressure Transmitter
TRAFAG ECTF2.5A 8473 75 5652 05 0000 0000 19 58 61 0...2.5Bar Pressure Transmitter
TRAFAG ECTF4.0A 8473 76 5652 05 0000 0000 19 58 61 0...4Bar Pressure Transmitter
TRAFAG ECTF6.0A 8473 77 5652 05 0000 0000 19 58 61 0...6Bar Pressure Transmitter
TRAFAG ECTF10.0A 8473 78 5652 05 0000 0000 19 58 61 0...10Bar Pressure Transmitter
Main features
- Measuring ranges from 100 mbar
- Excellent media compatibility
- Relative or absolute pressure measurement
- Titanium version optional
- Frontal membrane optional
About

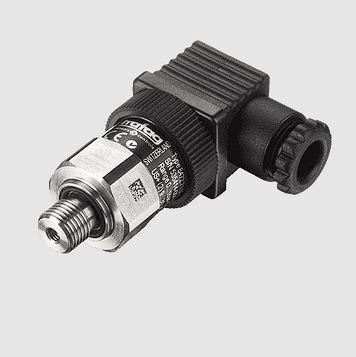

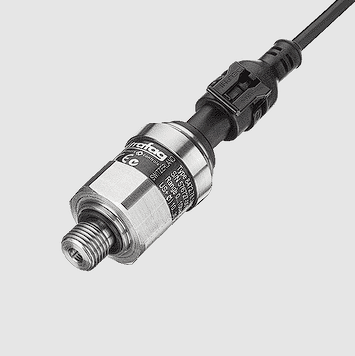

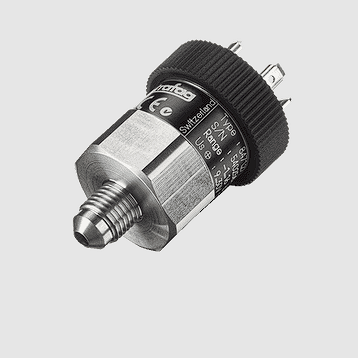

The economic pressure transmitter ECT 8473 is based on the tried and true ECT line of transmitters with the wide media temperature range from -25 to 125°C. The enhanced accuracy and the low pressure ranges down to 100 mbar in combination with a comprehensive set of of features, materials and options makes the ECT 8473 pressure transmitter an ideal and versatile solution suitable for a wide variety of applications.
Technical Data
| Product code | 8473 |
|---|---|
| Name | ECT |
| Designation | Industrial Pressure Transmitter |
| Product category |
Pressure transmitters |
| Measuring range | 0 ... 0.1 a 0 ... 40 bar 0 ... 1.5 a 0 ... 500 psi |
| Measuring principle | Thick-film-on-ceramic |
| Applications |
Hydraulics |
| Accuracy @ 25°C typ. | ± 0.3 % FS typ. (± 0.5 % FS typ., ± 1 % FS typ.) |
| Output signal | 4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, 0.5 ... 4.5 VDC ratiom. |
| Electrical connections | EN175301-803-A (DIN43650-A); M12x1; Industrial standard, contact distance 9.4 mm; Packard Metri Pack; Cable |
| Pressure connections | G1/4" f; G1/4" m; G1/2" m, DIN3852-A; G1/2" m, DIN3852-E; G1/2" m, DIN3852-E, with inner cone; 1/4"NPT m, ANSI B1.20.1; 1/8"NPT m, ANSI B1.20.1; 7/16"-20UNF m, SAE4 (J1926); 7/16”-20UNF m, DIN3866; 7/16”-20UNF f, SAE J512, valve opener; 9/16"-18UNF m, SAE |
| Media temperature | -25°C ... +125°C |
| Ambient temperature | -25°C ... +125°C Cable PVC 22: -5°C ... +60°C Cable PUR 24: -20°C ... +70°C Cable Raychem 08: -20°C ... +100°C |
