0216 519 47 90
TRAFAG ECT1.0A 8472 71 5717 05 0000 0000 19 58 61 0...1Bar Pressure Transmittter
TRAFAG ECT1.6A 8472 73 5717 05 0000 0000 19 58 61 0...1.6Bar Pressure Transmittter
TRAFAG ECT2.5A 8472 75 5717 05 0000 0000 19 58 61 0...2.5Bar Pressure Transmittter
TRAFAG ECT4.0A 8472 76 5717 05 0000 0000 19 58 61 0...4Bar Pressure Transmittter
TRAFAG ECT6.0A 8472 77 5717 05 0000 0000 19 58 61 0...6Bar Pressure Transmittter
TRAFAG ECT10.0A 8472 78 5717 05 0000 0000 19 58 61 0...10Bar Pressure Transmittter
TRAFAG ECT16.0A 8472 79 5717 05 0000 0000 19 58 61 0...16Bar Pressure Transmittter
TRAFAG ECT25.0A 8472 80 5717 05 0000 0000 19 58 61 0...25Bar Pressure Transmittter
TRAFAG ECT40.0A 8472 81 5717 05 0000 0000 19 58 61 0...40Bar Pressure Transmittter
TRAFAG ECT60.0A 8472 82 5717 05 0000 0000 19 58 61 0...60Bar Pressure Transmittter
TRAFAG ECT1.0V 8472 71 5717 05 0000 0000 17 58 61 0...1Bar Pressure Transmittter
TRAFAG ECT1.6V 8472 73 5717 05 0000 0000 17 58 61 0...1.6Bar Pressure Transmittter
TRAFAG ECT2.5V 8472 75 5717 05 0000 0000 17 58 61 0...2.5Bar Pressure Transmittter
TRAFAG ECT4.0V 8472 76 5717 05 0000 0000 17 58 61 0...4Bar Pressure Transmittter
TRAFAG ECT6.0V 8472 77 5717 05 0000 0000 17 58 61 0...6Bar Pressure Transmittter
TRAFAG ECT10.0V 8472 78 5717 05 0000 0000 17 58 61 0...10Bar Pressure Transmittter
TRAFAG ECT16.0V 8472 79 5717 05 0000 0000 17 58 61 0...16Bar Pressure Transmittter
TRAFAG ECT25.0V 8472 80 5717 05 0000 0000 17 58 61 0...25Bar Pressure Transmittter
TRAFAG ECT40.0V 8472 81 5717 05 0000 0000 17 58 61 0...40Bar Pressure Transmittter
TRAFAG ECT60.0V 8472 82 5717 05 0000 0000 17 58 61 0...60Bar Pressure Transmittter
Main features
- Excellent media compatibility
- Relative or absolute pressure measurement
- Titanium version optional
- Wide temperature range

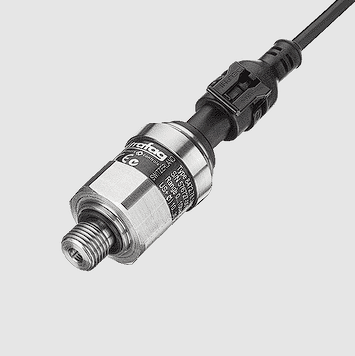

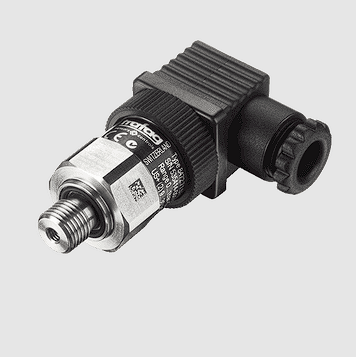

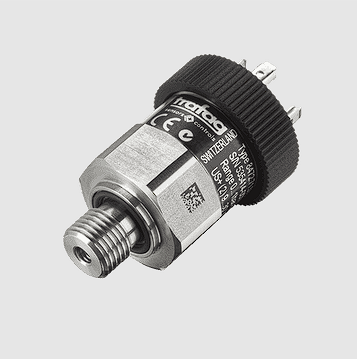

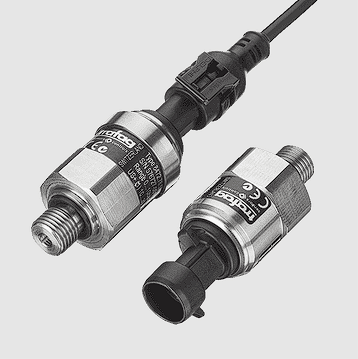

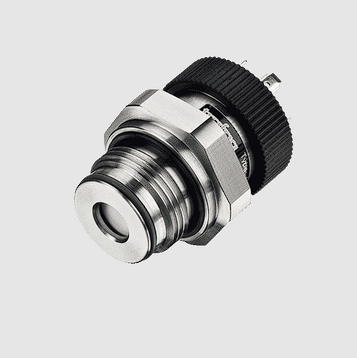

About
The economical pressure transmitter ECT 8472 is based on the tried and true ECT line of transmitters. The wide media temperature range from -25 to 125°C in combination with a comprehensive set of of features and options makes the ECT 8472 pressure transmitter a versatile solution suitable for most industrial applications.
Technical Data
| Product code | 8472 |
|---|---|
| Name | ECT |
| Designation | Industrial Pressure Transmitter |
| Product category |
Pressure transmitters |
| Measuring range | 0 ... 1 a 0 ... 400 bar 0 ... 15 a 0 ... 5000 psi |
| Measuring principle | Thick-film-on-ceramic |
| Applications |
Hydraulics |
| Accuracy @ 25°C typ. | ± 0.5 % FS typ. |
| Output signal | 4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, 0.5 ... 4.5 VDC ratiom. |
| Electrical connections | EN175301-803-A (DIN43650-A); M12x1; Industrial standard, contact distance 9.4 mm; Packard Metri Pack; Cable |
| Pressure connections | G1/4" f; G1/4" m; G1/2" m, DIN3852-A; G1/2" m, DIN3852-E; G1/2" m, DIN3852-E, with inner cone; 1/4"NPT m, ANSI B1.20.1; 1/8"NPT m, ANSI B1.20.1; 7/16"-20UNF m, SAE4 (J1926); 7/16”-20UNF m, DIN3866; 7/16”-20UNF f, SAE J512, valve opener; 9/16"-18UNF m, SAE |
| Media temperature | -25°C ... +125°C 400 bar/5000 psi: -10°C ... +125°C |
| Ambient temperature | -25°C ... +125°C Cable PVC 22: -5°C ... +60°C Cable PUR 24: -20°C ... +70°C Cable Raychem 08: -20°C ... +100°C |
