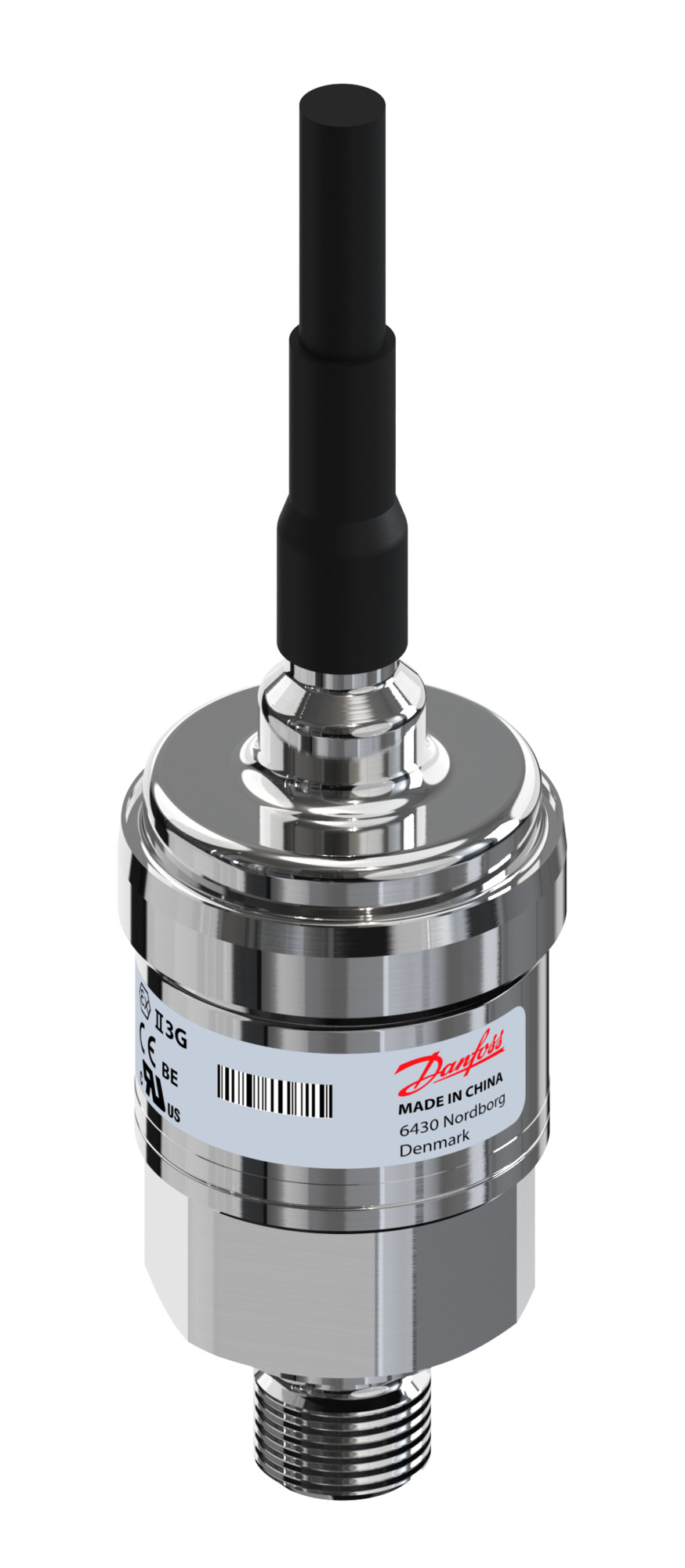

Pressure transmitter, MBS 3000, 0.00 bar - 0.40 bar, 0.00 psi - 5.80 psi
060G6472
Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: Cable, Pressure connection type: G, Pressure connection size: 1/4
Product details
| Gross weight | 0.27 Kg |
| Net weight | 0.228 Kg |
| Volume | 1.259 Liter |
| EAN | 5702428933810 |
| + supply | Brown |
| - common | Black |
| Accuracy, max. [±FS%] | 1 % |
| Accuracy, typical [±FS%] | 0.5 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -22 °F |
| Approval | ATEX |
| Approval comments | ATEX Ex ec IIA T4 Gc |
| Cable length [in] | 79 in |
| Cable length [m] | 2 m |
| Comments | SCREEN INSULATED FROM ENCLOSUR |
| Compensated temp. range [°C] [max] | 80 °C |
| Compensated temp. range [°C] [min] | 0 °C |
| Compensated temp. range [°F] [max] | 176 °F |
| Compensated temp. range [°F] [min] | 32 °F |
| Electrical conn. comments | screened |
| Electrical connection | Cable |
| Enclosure rating IP | IP67 |
| Flush diaphragm | No |
| High Clipping Level | 22.4 |
| In scope of WEEE and contain batteries | No |
| International Article Number | 5702428933810 |
| Intrinsically safe | No |
| Low Clipping level | 3.6 |
| Medium temperature range [°C] [max] | 85 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 185 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Non-linearity BFSL [±FS%] | 0.5 % |
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 2.4 bar |
| Overload pressure max. [psi] | 34 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 3852-E ISO 1179-2 (Form E) |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 0.4 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 5.8 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Response time max. [ms] | 4 ms |
| SCIP dossier no. | "16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d" |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 9 V |
| Type | MBS 3000 |
