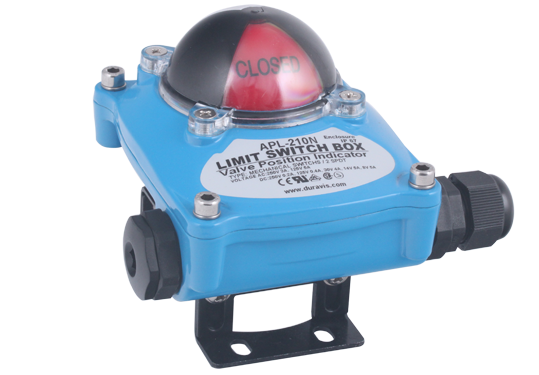

APL-210 Limit Switch Boxes

General Information:
APL-210 limit switch boxes are used to provide position feedback for pneumatic and electric actuated valves. With a compact and durable body, and IP67 protection rating, they are ideal for use in harsh industrial environments. Available with mechanical or inductive switch options.

Technical Specifications:

• Body Material: Die-cast aluminum, electrostatic painted

• Protection Class: IP67

• Switch Type: Mechanical micro switch (standard) / inductive sensor (optional)

• Number of Switches: 2 pcs (SPDT)

• Cable Entry: 2 x M20x1.5 cable glands

• Visual Indicator: 0°–90° position visual display

• Terminal Block: Spring type, 8 terminals

• Ambient Temperature: -20°C to +80°C

• Mounting Standard: VDI/VDE 3845, Namur compatible

• Certifications: CE, ATEX (optional)

Mounting Position:

• Direct mounting on actuator (via Namur bracket)

• Suitable for both horizontal and vertical mounting

Applications:

• Pneumatically actuated valves

• Electrically actuated systems

• Process automation

• Water treatment facilities

• Food, chemical, energy, and petrochemical industries
