0216 519 47 90

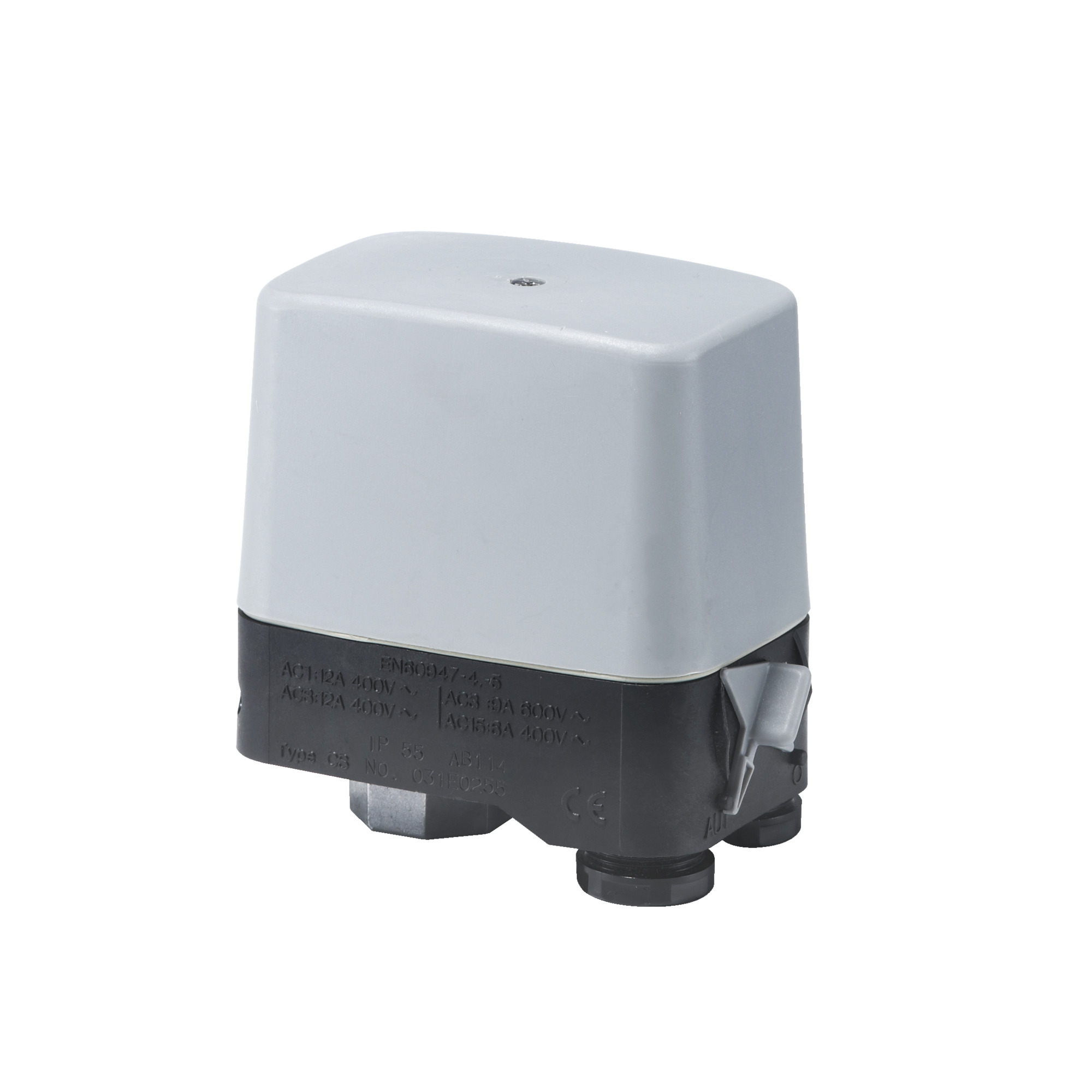

Pressure switch, DANFOSS CS
031E021566
Regulation range [bar] Pe: 2.00 - 6.00, Contact function: TPST, Reset function: Auto, Pressure connection type: G, Pressure connection size: 1/2, Pressure Male/Female: Female, Enclosure rating IP: IP55, Max. Working Pressure [bar]: 6.0
Product details
| Gross weight | 0.516 Kg |
| Net weight | 0.438 Kg |
| Volume | 1.183 Liter |
| EAN | 5702423208685 |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | CE EAC LVD RoHS TYSK LLC CDC EURO-TYSK UKCA |
| Contact function | TPST |
| Contact rating | AC3=12 A, 220 - 415 V AC3=9 A, 600 V DC13=2 A, 220 V DC14=2 A, 220 V |
| Diff.@Max. range setting [bar] [max] | 2 bar |
| Diff.@Max. range setting [bar] [min] | 1 bar |
| Diff.@Min. range setting [bar] [max] | 1 bar |
| Diff.@Min. range setting [bar] [min] | 0.72 bar |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 16 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| Enclosure rating IP | IP55 |
| In scope of WEEE and contain batteries | No |
| Max. test pressure [bar] Pe | 10 bar |
| Max. test pressure [psig] | 145 psig |
| Max. Working Pressure [bar] | 6 bar |
| Max. Working Pressure [psig] | 87 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/2 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure sensing element | Diaphragm |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Quantity per packing format | 30 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] | 6 bar |
| Regulation range [bar] Pe [min] | 2 bar |
| Regulation range [psig] Pe [max] | 87 psig |
| Regulation range [psig] Pe [min] | 29 psig |
| Reset function | Auto |
| SCIP dossier no. | d7fe15ef-cc24-4df6-b350-987ccb4862bf |
| Serviceable | No |
| Type | CS |
