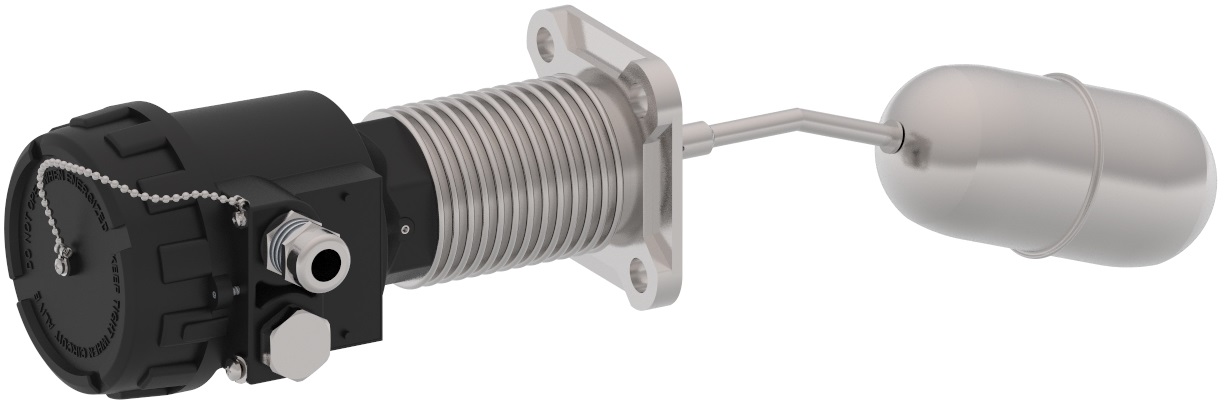

SRS 70 Series High Temperature Level Switch

General Description

SRS level switches are used for tank level measurement and control. It is preferred with the advantages of high temperature resistance, long-lasting contact structure that can work in all directions, stainless steel wet parts, and vertical or horizontal connection.

Technicial Specifications

In our SRS 70 series, the mounting method must be positioned horizontally. Flange material 316 Pas. It is steel. Float material 316 Pas. It is steel.
Our ambient temperature is (-)20°C…(+)80°C.
Max. The pressure is 16 bars. Max. The temperature is 400°C. The float test pressure is 40 bar.
Housing: Aluminium.
