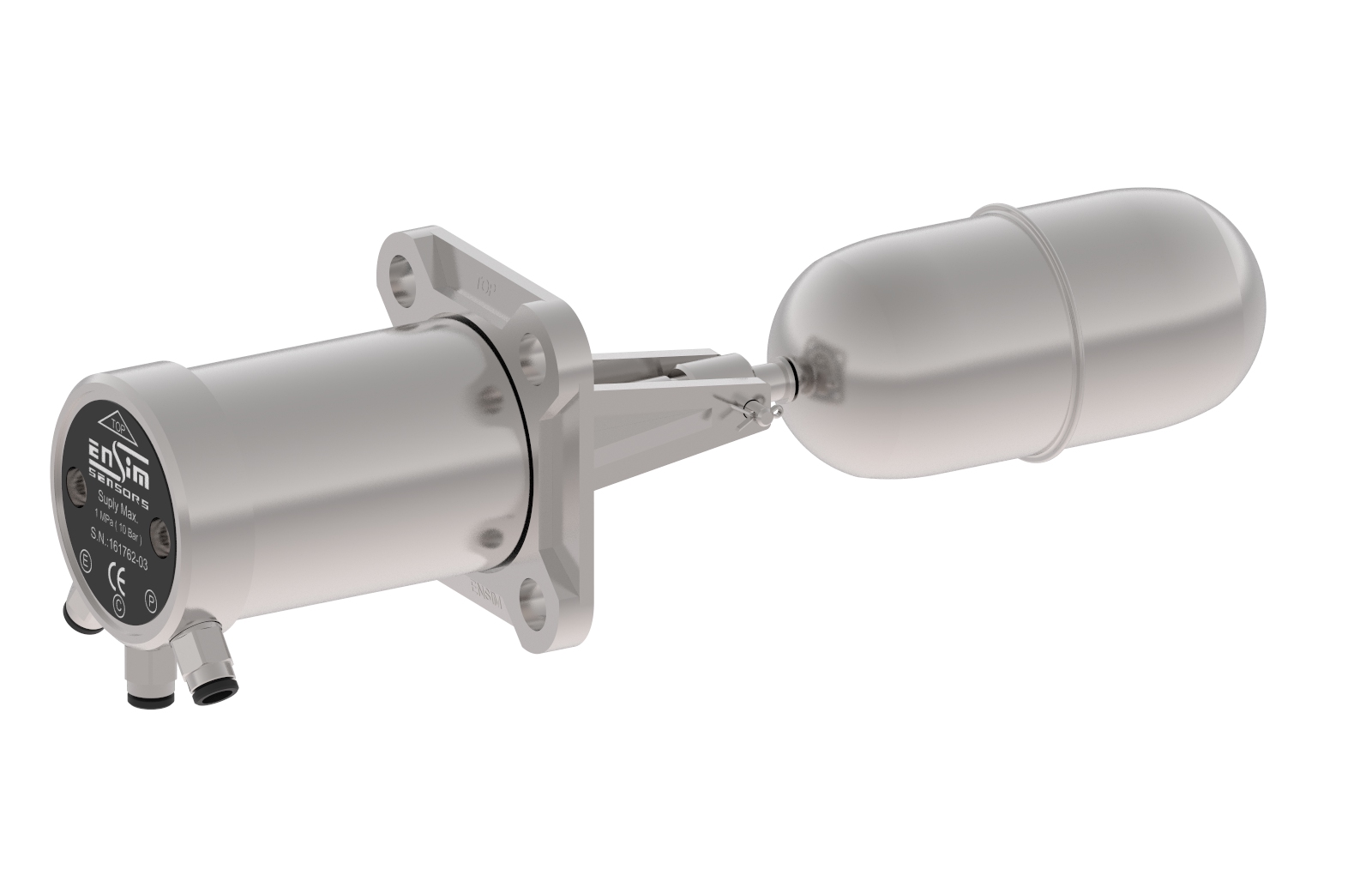

SRS 50 Series Level Switch with Pneumatic Output

General Description

SRS level switches are used for tank level measurement and control. It is preferred with the advantages of high temperature resistance, long-lasting contact structure that can work in all directions, stainless steel wet parts, and vertical or horizontal connection.

Technicial Specifications

In our SRS 50 series, the mounting method must be positioned horizontally. Flange material 316 Pas. It is steel. Float material 316 Pas. It is steel.
Our ambient temperature is (-)20°C…(+)80°C.
Max. The pressure is 25 bars. Max. The temperature is 250°C. The float test pressure is 40 bar.
Housing: Aluminium.
