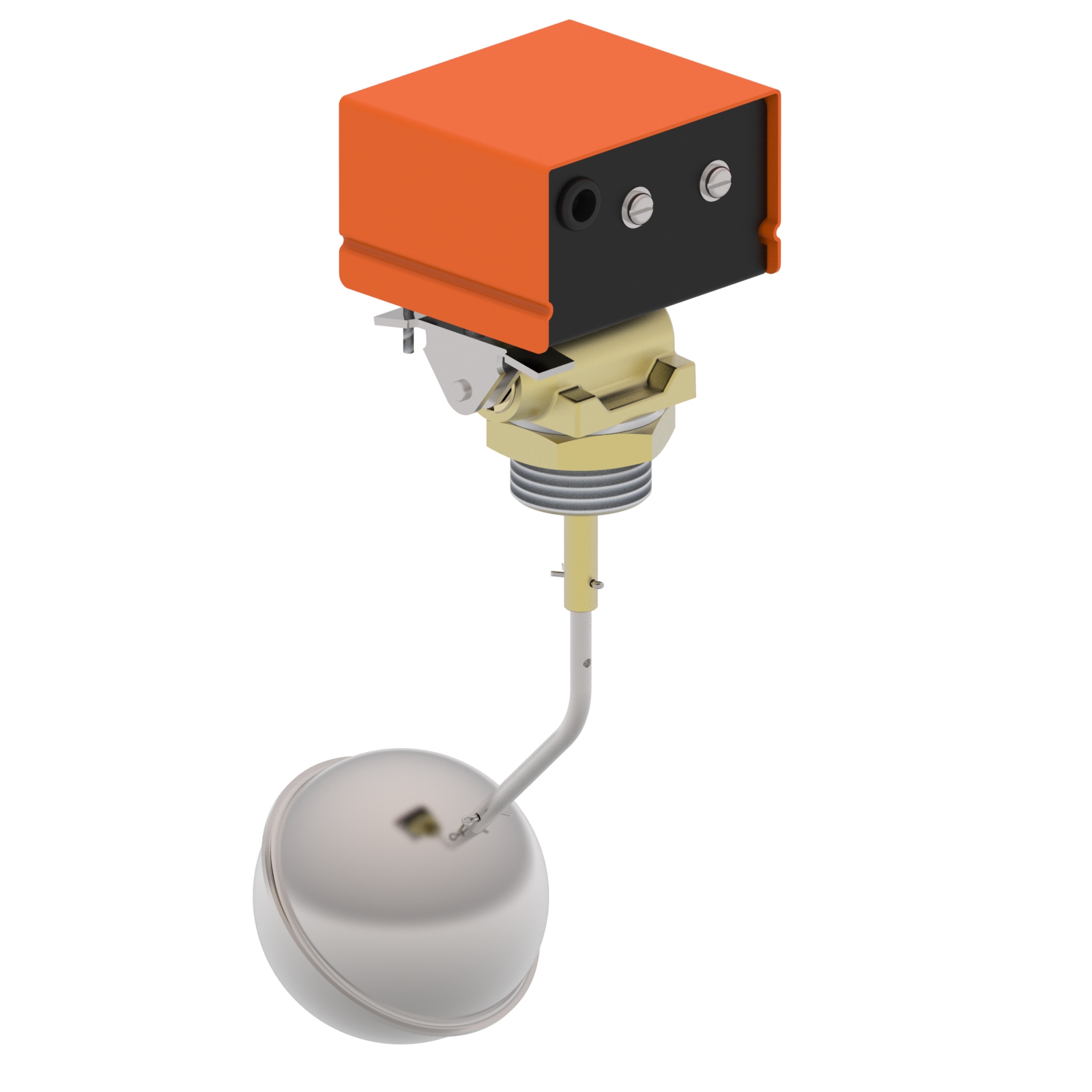

SRS 40 Series Economic Level Switch

General Description

SRS level switches are used for tank level measurement and control. It is preferred with the advantages of high temperature resistance, long-lasting contact structure that can work in all directions, stainless steel wet parts, and vertical or horizontal connection.

Technicial Specifications

In our SRS 40 series, the mounting method must be positioned horizontally. The record and nut material is brass. Float material 304 Pas. It is steel.
Connection is R1" Male thread. Max. pressure is 7 bar. Max. temperature is 160°C.
Our ambient temperature is (-)20°C…(+)80°C.
Housing: Aluminium.
