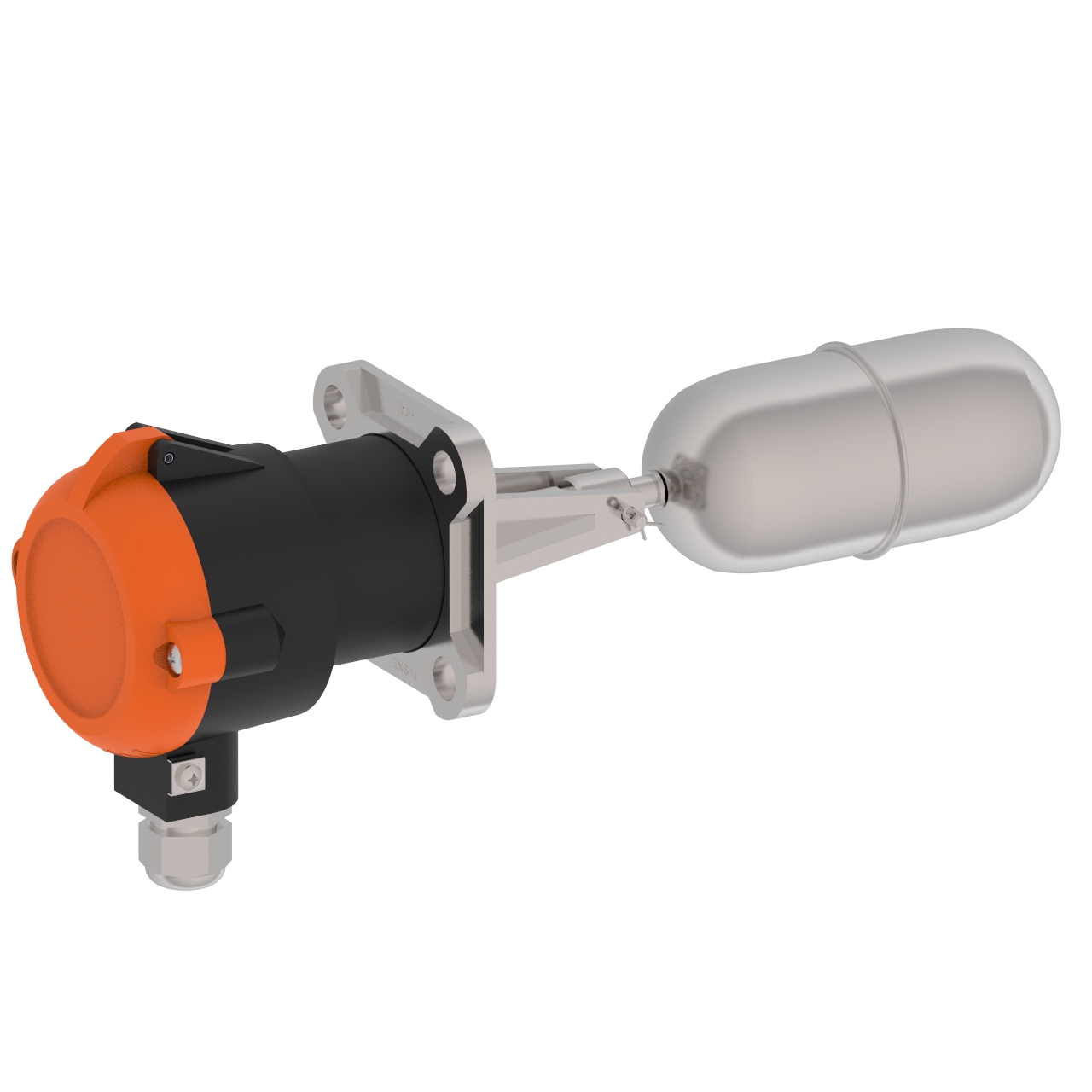

SRS 60 Series High Temperature Level Switch

General Description

ELB level switches are used for tank level measurement and control. It is preferred with the advantages of high temperature resistance, long-lasting contact structure that can work in all directions, stainless steel wet parts, and vertical or horizontal connection.

Technicial Specifications

In our ELB 60 series, the mounting method must be positioned horizontally. Flange material 304 Pas. It is steel. Float material 316 Pas. It is steel.
Our ambient temperature is (-)20°C…(+)80°C.
Max. The pressure is 16 bars. Max. The temperature is 150°C. The float test pressure is 25 bar.
Housing: Aluminium.
