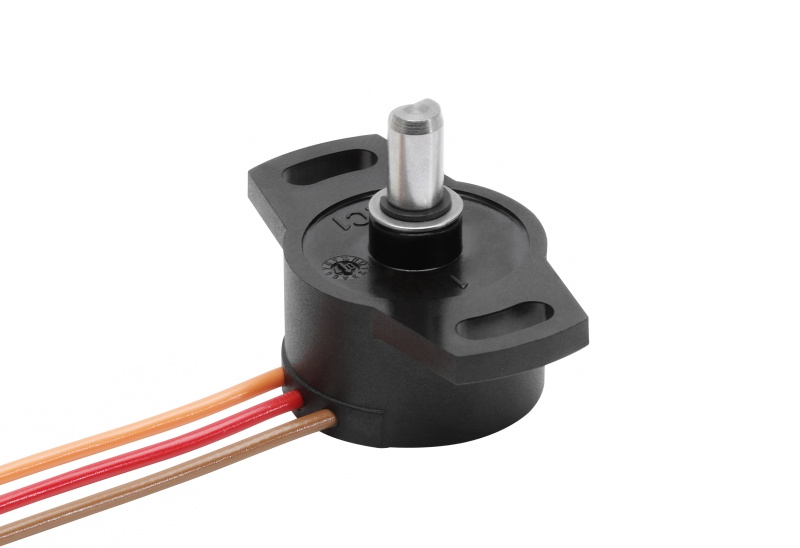

SP 2800 Rotary Potentiometer

General Description

High precision, shaft, circular potentiometer; More than 50 million movement lifespan; Infinite and continuous rotation feature; Easy installation with two different shaft options: marked or push-on

Potentiometric measurement
100°, 308° or 345° electrical measuring angle
6mm shaft diameter
Linearity up to ±0.3%
120RPM working speed
Movement life up to 50 million
IP67 protection class

Technicial Specifications

High precision circular potentiometer with integrated shaft
100°, 308° or 345° electrical measurement feature
Linearity up to 0.3%
Easy installation with two different shaft options: marked or push-on
6mm shaft diameter
IP67 protection class
Long life with high durability: more than 50 million movements
Product of superior German technology
