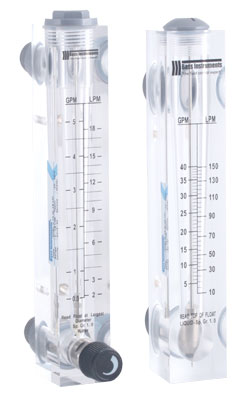

Panel Mount Acrylic Flowmeters

General Description

Acrylic Flowmeters are low-cost flowmeters designed to measure the instantaneous flow rate of water or fluids with similar properties to water. There are two models where you can only take readings or adjust the flow with the help of the adjustment valve. Connection parts can optionally be made of AISI316 material.

Technicial Specifications

• Measuring Range-Water2 - 18 l/min ... 30 - 170 l/min
• Connection DimensionThreaded 1/2",3/4",1"
• Body - ConnectionsAcrylic - ABS Plastic
• Temperature -10...60°C max.
• Pressure10 Bar max.
• Sensitivity<±3% T.S.
• ApplicationLiquids

Features

• Easy to Assemble
• Low cost
• Easy to Read Scale
