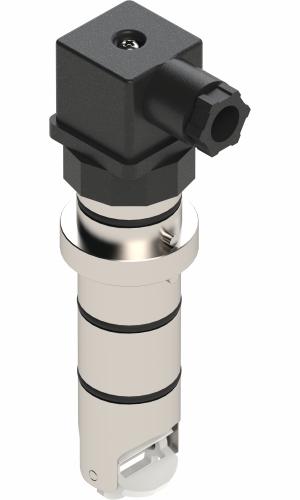

Immersion Wheel Flowmeter

General Description

Immersion Type Flowmeters are designed for DN15...DN1200 pipes, are easy to install, have no pressure loss, yet are very affordable. It can be used easily in chemical fluids. Our product with pulse output can optionally be produced with 4-20 mA or 0-10V DC analog output. Our standard product with CPVC body can also be produced as PVDF, Brass, AISI316 depending on the process. It can be easily used in water, wastewater, pools, osmosis systems and chemical applications.

Technicial Specifications

• Measuring Range-Liquid0.15...8 m/sec.
• Connection Size1 1/4"
• Wet PartsCPVC,PVDF,Brass and AISI316
• Temperature -20...120°C
• Pressure10 Bar max, 25 Bar, 110 Bar (Opt.)
• Precision<±0.075% T.S.
• ProtectionIP65,IP68 Opt. Ex-proof
• Supply12...24V DC
• OutputPulse, Opt. 4-20 mA, 0-10V DC
• DisplayOptional LCD (Instant and Total)
• Applied Pipe DiametersDN15...DN1200
• ApplicationLiquids

Features

• Resistant to Heavy Conditions
• High Sensitivity
• Long lasting
• Optional Ex-proof
• Different Output Options According to Different Processes
