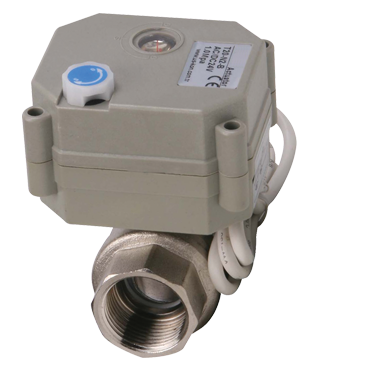

DURAVIS EVM C3 Mini Motorized Valves, 24 VAC-DC

Model	Size	Way	Voltage	Max. Operating Pressure
EVM15-N2-C3	1/2" / DN15	2/2	24V AC/DC	15 Bar
EVM20-N2-C3	3/4" / DN20	2/2	24V AC/DC	15 Bar
EVM25-N2-C3	1" / DN25	2/2	24V AC/DC	15 Bar

*For Stainless Steel body, please order with "S2" instead of "N2".

General Information:
The Duravis EVM C3 series mini motorized valves are compact, low-power devices ideal for use in automation systems. Operating at 24 VAC/DC, they are especially suited for building management systems, HVAC setups, and smart home installations. The ball valve design ensures tight sealing and long service life.

Technical Specifications:

• Type: Mini motorized ball valve

• Way Type: 2-way

• Operating Voltage: 24 VAC / 24 VDC

• Body Material: Nickel-plated brass

• Port Size: G1/2” (DN15)

• Pressure Range: 0 – 10 bar

• Temperature Range: 2°C – 90°C

• Opening/Closing Time: Approx. 6 – 15 seconds

• Control Mode: ON/OFF or 3-point (depending on model)

• Power Consumption: Low power (approx. 2–5 W)

Applications:
Widely used in underfloor heating, HVAC automation, water treatment and distribution, agricultural irrigation, smart home control panels, and other small-scale flow control applications.

Mounting Position:
Can be installed in any orientation. For optimal lifespan, vertical installation with the actuator facing upward is recommended.
