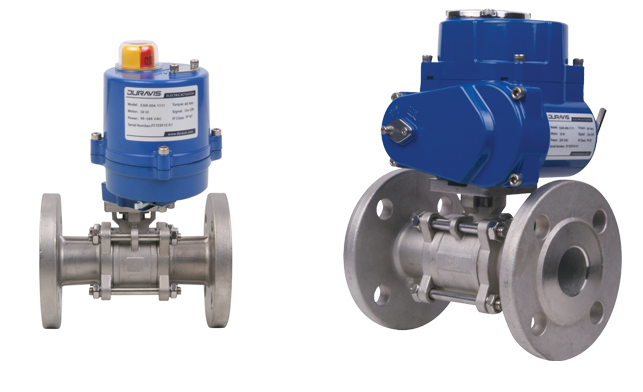

DURAVIS Electric Flanged 2/2 Stainless Ball Valve

Model Size Way Voltage Operating Pressure
EAR-004-1111 & BLV-S222FP015M 1/2" (DN15) 2/2 230V AC 0-40 Bar
EAR-004-1111 & BLV-S222FP020M 3/4" (DN20) 2/2 230V AC 0-40 Bar
EAR-004-1111 & BLV-S222FP025M 1" (DN25) 2/2 230V AC 0-40 Bar
EAR-006-1111 & BLV-S222FP032M 1 1/4" (DN32) 2/2 230V AC 0-40 Bar
EAR-006-1111 & BLV-S222FP040M 1 1/2" (DN40) 2/2 230V AC 0-40 Bar
EAR-006-1111 & BLV-S222FP050M 2" (DN50) 2/2 230V AC 0-40 Bar
EAR-008-1111 & BLV-S222FP065M 2 1/2" (DN65) 2/2 230V AC 0-40 Bar
EAR-010-1111 & BLV-S222FP080M 3" (DN80) 2/2 230V AC 0-40 Bar
EAR-016-1111 & BLV-S222FP100M 4" (DN100) 2/2 230V AC 0-40 Bar
EAR-004-1211 & BLV-S222FP015M 1/2" (DN15) 2/2 24V DC/AC 0-40 Bar
EAR-004-1211 & BLV-S222FP020M 3/4" (DN20) 2/2 24V DC/AC 0-40 Bar
EAR-004-1211 & BLV-S222FP025M 1" (DN25) 2/2 24V DC/AC 0-40 Bar
EAR-006-1211 & BLV-S222FP032M 1 1/4" (DN32) 2/2 24V DC 0-40 Bar
EAR-006-1211 & BLV-S222FP040M 1 1/2" (DN40) 2/2 24V DC 0-40 Bar
EAR-006-1211 & BLV-S222FP050M 2" (DN50) 2/2 24V DC 0-40 Bar
EAR-008-1211 & BLV-S222FP065M 2 1/2" (DN65) 2/2 24V DC 0-40 Bar

General Information:
Duravis electric flanged 2/2 stainless steel ball valves are designed for isolation and control of liquid or gas flow in high-pressure and corrosive environments. The flanged connection allows easy installation into industrial piping systems. The stainless steel body provides excellent corrosion resistance, and the electric actuator enables reliable remote control.

Technical Specifications:

  • Type: 2/2-way electric ball valve (flanged)

  • Operating Voltage: 24 VAC/VDC or 220 VAC

  • Connection Type: Flanged – PN16 / PN25 / ANSI150 (depending on model)

  • Body Material: Stainless steel (SS304 or SS316)

  • Sealing Material: PTFE (Teflon)

  • Flow Type: Full bore

  • Working Pressure: Max 40 bar (depends on flange class)

  • Working Temperature: -10°C to +180°C

  • Control Type: ON/OFF or modulating (optional)

  • Operating Time: 10 – 30 seconds (varies by model)

  • Enclosure Protection: IP67

  • Available Sizes: DN15 – DN100 (1/2" – 4")

Applications:
Used in industrial process systems, chemical and petrochemical plants, steam lines, water and wastewater treatment plants, power plants, food and pharmaceutical industries requiring high performance and durability.

Mounting Position:
Can be installed in any position. Vertical installation is recommended. Flange alignment and bolt pattern standards must be properly checked.
