| Model | Size | Way | Voltage | Operating Pressure |
|---|---|---|---|---|
| EAR-004-1111 & BLV-S222BP015M | 1/2" (DN15) | 3/2 | 230V AC | PN63 |
| EAR-004-1111 & BLV-S232BP020M | 3/4" (DN20) | 3/2 | 230V AC | PN63 |
| EAR-004-1111 & BLV-S232BP025M | 1" (DN25) | 3/2 | 230V AC | PN63 |
| EAR-006-1111 & BLV-S232BP032M | 1 1/4" (DN32) | 3/2 | 230V AC | PN63 |
| EAR-006-1111 & BLV-S232BP040M | 1 1/2" (DN40) | 3/2 | 230V AC | PN63 |
| EAR-006-1111 & BLV-S232BP050M | 2" (DN50) | 3/2 | 230V AC | PN63 |
| EAR-004-1211 & BLV-S232BP015M | 1/2" (DN15) | 3/2 | 24V DC/AC | PN63 |
| EAR-004-1211 & BLV-S232BP020M | 3/4" (DN20) | 3/2 | 24V DC/AC | PN63 |
| EAR-004-1211 & BLV-S232BP025M | 1" (DN25) | 3/2 | 24V DC/AC | PN63 |
| EAR-006-1211 & BLV-S232BP032M | 1 1/4" (DN32) | 3/2 | 24V DC | PN63 |
| EAR-006-1211 & BLV-S232BP040M | 1 1/2" (DN40) | 3/2 | 24V DC | PN63 |
| EAR-006-1211 & BLV-S232BP050M | 2" (DN50) | 3/2 | 24V DC | PN63 |
General Information:

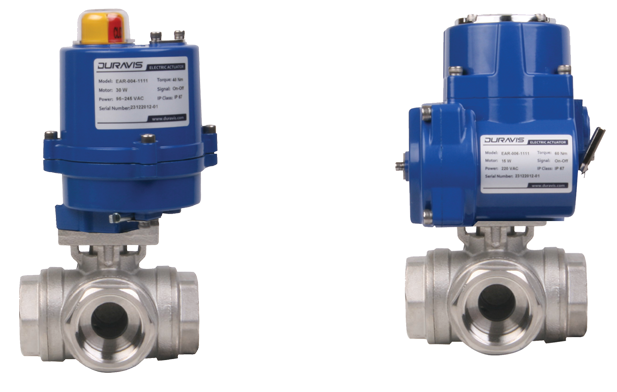

Duravis electric 3/2 stainless steel ball valves are designed for directional control in chemical, corrosive, or hygienic environments. Featuring three ports, these valves allow fluid flow to be directed between different pipelines. The stainless steel body ensures durability, while the electric actuator provides reliable automation and remote operation.
Technical Specifications:
-
Type: 3/2-way electric ball valve
-
Operating Voltage: 24 VAC/VDC or 220 VAC
-
Connection Type: Female threaded (BSP or NPT)
-
Body Material: Stainless steel (SS304 or SS316)
-
Sealing Material: PTFE (Teflon)
-
Flow Type: L-port or T-port (depending on model)
-
Working Pressure: Max 63 bar
-
Working Temperature: -10°C to +120°C
-
Control Type: ON/OFF or modulating (optional)
-
Operating Time: 10 – 20 seconds
-
Enclosure Protection: IP67
-
Available Sizes: 1/2", 3/4", 1", 1¼", 1½", 2" (varies by model)
Applications:
Used in chemical plants, water treatment systems, steam and high-temperature lines, hygienic process pipelines, industrial automation, and food & pharmaceutical industries for aggressive fluid control.
Mounting Position:
Can be mounted in any position. Flow direction and port configuration (L or T) should be indicated on the valve body. Vertical mounting is recommended.
