High-tech at every step

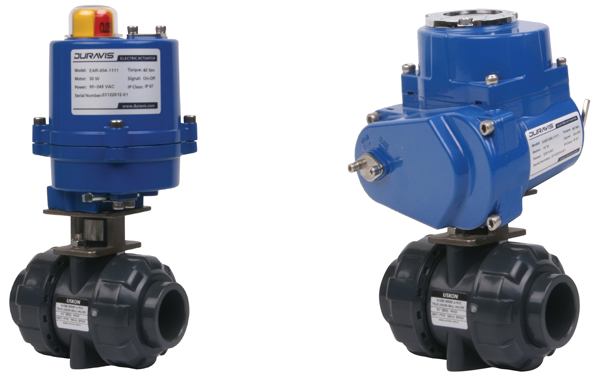

DURAVIS Electric 2/2 Thread U-PVC Ball Valve

Model Size Way Voltage Operating Pressure
EAR-004-1111 & BLV-P422SE020M 1/2" (Ø20mm) 2/2 230V AC 0-16 Bar
EAR-004-1111 & BLV-P422SE025M 3/4" (Ø25mm) 2/2 230V AC 0-16 Bar
EAR-004-1111 & BLV-P422SE032M 1" (Ø32mm) 2/2 230V AC 0-16 Bar
EAR-004-1111 & BLV-P422SE040M 1 1/4" (Ø40mm) 2/2 230V AC 0-16 Bar
EAR-004-1111 & BLV-P422SE050M 1 1/2" (Ø50mm) 2/2 230V AC 0-16 Bar
EAR-006-1111 & BLV-P422SE063M 2" (Ø63mm) 2/2 230V AC 0-16 Bar
EAR-006-1111 & BLV-P422SE075M 2 1/2" (Ø75mm) 2/2 230V AC 0-10 Bar
EAR-008-1111 & BLV-P422SE090M 3" (Ø90mm) 2/2 230V AC 0-10 Bar
EAR-008-1111 & BLV-P422SE110M 4" (Ø110mm) 2/2 230V AC 0-10 Bar
EAR-004-1211 & BLV-P422SE020M 1/2" (Ø20mm) 2/2 24V DC/AC 0-16 Bar
EAR-004-1211 & BLV-P422SE025M 3/4" (Ø25mm) 2/2 24V DC/AC 0-16 Bar
EAR-004-1211 & BLV-P422SE032M 1" (Ø32mm) 2/2 24V DC/AC 0-16 Bar
EAR-004-1211 & BLV-P422SE040M 1 1/4" (Ø40mm) 2/2 24V DC/AC 0-16 Bar
EAR-004-1211 & BLV-P422SE050M 1 1/2" (Ø50mm) 2/2 24V DC/AC 0-16 Bar
EAR-006-1211 & BLV-P422SE063M 2" (Ø63mm) 2/2 24V DC 0-16 Bar
EAR-006-1211 & BLV-P422SE075M 2 1/2" (Ø75mm) 2/2 24V DC 0-10 Bar
EAR-008-1211 & BLV-P422SE090M 3" (Ø90mm) 2/2 24V DC 0-10 Bar
EAR-008-1211 & BLV-P422SE110M 4" (Ø110mm) 2/2 24V DC 0-10 Bar

General Information:
Duravis electric 2/2 U-PVC ball valves are durable and cost-effective solutions for controlling water and non-corrosive liquids. The U-PVC (Unplasticized Polyvinyl Chloride) material provides excellent resistance to acidic and alkaline substances. Equipped with an electric actuator, they can be controlled remotely and are suitable for use in various industrial systems.

Technical Specifications:

  • Type: 2/2-way electric ball valve

  • Operating Voltage: 24 VAC/VDC or 220 VAC

  • Connection Type: Female threaded (BSP or NPT)

  • Body Material: U-PVC

  • Sealing Material: EPDM or FKM (optional)

  • Flow Type: Full bore

  • Working Pressure: Max 10 bar

  • Working Temperature: 0°C to +60°C

  • Control Type: ON/OFF

  • Operating Time: 5 – 15 seconds

  • Enclosure Protection: IP65

  • Available Sizes: 1/2", 3/4", 1", 1¼", 1½", 2" (varies by model)

Applications:
Used in water treatment systems, pool filtration systems, chemical industries, agricultural irrigation, and general fluid transportation systems.

Mounting Position:
Can be installed in any position. Flow direction is indicated on the valve body. Vertical installation is recommended.
