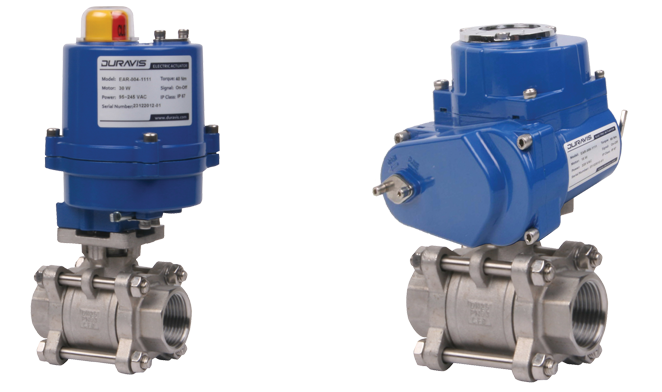

DURAVIS Electric 2/2 Thread Stainless Ball Valve

Model	Size	Way	Voltage	Operating Pressure
EAR-004-1111 & BLV-S222BP015M	1/2" (DN15)	2/2	230V AC	PN63
EAR-004-1111 & BLV-S222BP020M	3/4" (DN20)	2/2	230V AC	PN63
EAR-004-1111 & BLV-S222BP025M	1" (DN25)	2/2	230V AC	PN63
EAR-004-1111 & BLV-S222BP032M	1 1/4" (DN32)	2/2	230V AC	PN63
EAR-006-1111 & BLV-S222BP040M	1 1/2" (DN40)	2/2	230V AC	PN63
EAR-006-1111 & BLV-S222BP050M	2" (DN50)	2/2	230V AC	PN63
EAR-008-1111 & BLV-S222BP065M	2 1/2" (DN65)	2/2	230V AC	PN63
EAR-008-1111 & BLV-S222BP080M	3" (DN80)	2/2	230V AC	PN63
EAR-004-1211 & BLV-S222BP015M	1/2" (DN15)	2/2	24V DC/AC	PN63
EAR-004-1211 & BLV-S222BP020M	3/4" (DN20)	2/2	24V DC/AC	PN63
EAR-004-1211 & BLV-S222BP025M	1" (DN25)	2/2	24V DC/AC	PN63
EAR-004-1211 & BLV-S222BP032M	1 1/4" (DN32)	2/2	24V DC/AC	PN63
EAR-006-1211 & BLV-S222BP040M	1 1/2" (DN40)	2/2	24V DC	PN63
EAR-006-1211 & BLV-S222BP050M	2" (DN50)	2/2	24V DC	PN63
EAR-008-1211 & BLV-S222BP065M	2 1/2" (DN65)	2/2	24V DC	PN63
EAR-008-1211 & BLV-S222BP080M	3" (DN80)	2/2	24V DC	PN63

General Information:
Duravis electric 2/2 stainless steel ball valves are designed for use in corrosive environments and hygienic process applications. With a durable stainless steel body, they offer excellent chemical resistance and allow safe and reliable control of liquids and gases. Electrically actuated, they are ideal for remote automation systems.

Technical Specifications:

• Type: 2/2-way electric ball valve

• Operating Voltage: 24 VAC/VDC or 220 VAC

• Connection Type: Female threaded (BSP or NPT)

• Body Material: Stainless steel (SS304 or SS316)

• Sealing Material: PTFE (Teflon)

• Flow Type: Full bore

• Working Pressure: Max 63 bar (depending on model)

• Working Temperature: -10°C to +120°C

• Control Type: ON/OFF or modulating (optional)

• Operating Time: 10 – 20 seconds (varies by model)

• Enclosure Protection: IP67

• Available Sizes: 1/2", 3/4", 1", 1¼", 1½", 2"

Applications:
Used in chemical and petrochemical plants, food and pharmaceutical industries, marine applications, water treatment systems, steam and hot fluid lines, hygienic processes, and aggressive fluid control.

Mounting Position:
Can be mounted in any position. Vertical installation is preferred. Flow direction is indicated on the valve body.
