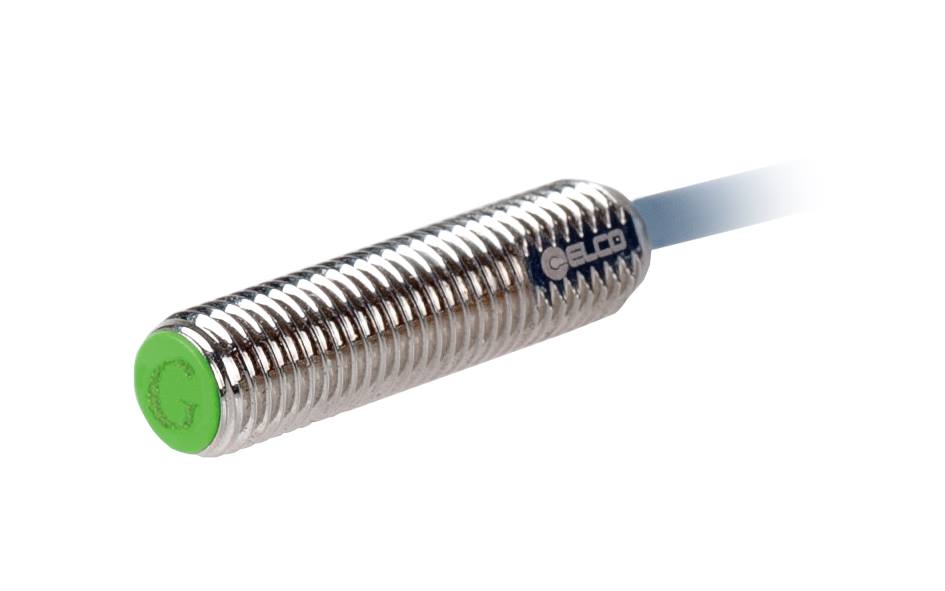

Elco M12 Series Inductive Sensor

General Description:
The ELCO M12 Series inductive sensors are widely used in industrial automation thanks to their medium cylindrical size and reliable performance. They offer accurate metal detection even in harsh environments with their robust housing and high sensitivity.

Technical Specifications:

• Sensing Principle: Inductive (metal detection only)

• Body Size: M12 (cylindrical)

• Sensing Distance: 2 – 8 mm (depending on model)

• Supply Voltage: 10 – 30 VDC

• Output Type: NPN or PNP (NO / NC options available)

• Connection Type: Cable output or M12 connector

• Protection Class: IP67

• Housing Material: Stainless steel or nickel-plated brass

• Operating Temperature: -25 … +70 °C

• Mounting Type: Flush or non-flush

Advantages:

• Medium body size for versatile applications

• High protection against dust, oil, and water (IP67)

• Fast and reliable detection performance

• Rugged housing for long service life

• Suitable for machinery, automation, and process control
