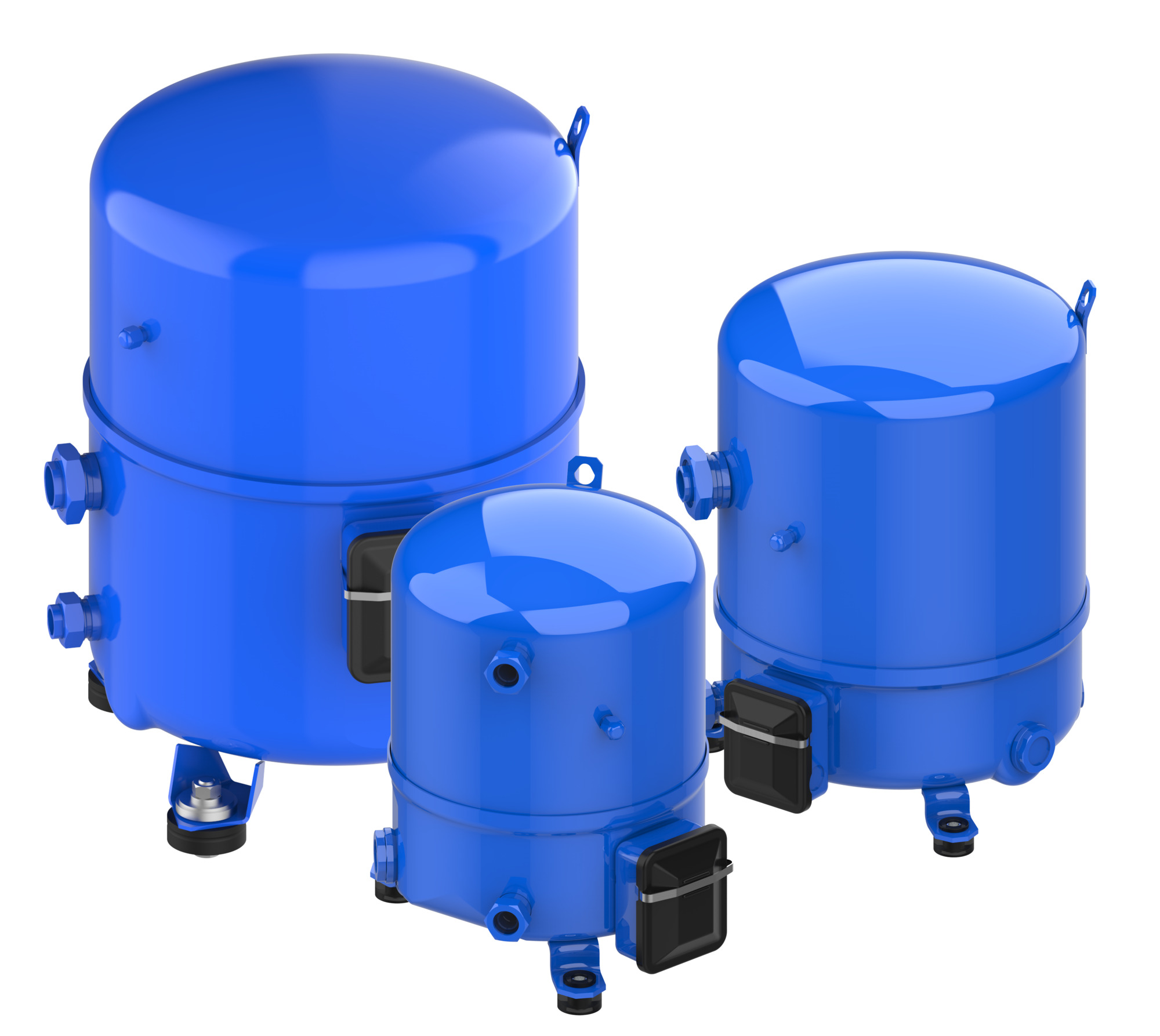

| Model | Versiyon | Disp. CC | Nominal Güç | Voltaj | Vana Bağlantısı Emme | Vana Bağlantısı Basma | Silindir Sayısı | Çalışma Rejimi | Yağ Miktarı (Lt) |
|---|---|---|---|---|---|---|---|---|---|
| MTZ 18 | 5VI | 30,23 | 1,5 Hp | 220–230 V 50Hz | 1" 1/2" | 1" 3/8" | 1 | +10 °C / -30 °C (MBP) | 0,95 |
| MTZ 22 | 5VI | 38,12 | 2,0 Hp | 220–230 V 50Hz | 1" | 1" 3/8" | 1 | +10 °C / -30 °C (MBP) | 0,95 |
| MTZ 28 | 5VI | 48,06 | 2,3 Hp | 220–230 V 50Hz | 1" 5/8" | 1" 1/2" | 1 | +10 °C / -30 °C (MBP) | 0,95 |
| MTZ 32 | 5VI | 53,86 | 2,7 Hp | 220–230 V 50Hz | 1 1/4" | 1" 1/2" | 1 | +10 °C / -30 °C (MBP) | 0,95 |
| MTZ 36 | 5VI | 60,47 | 3,0 Hp | 220–230 V 50Hz | 1 1/4" | 1" 1/2" | 1 | +10 °C / -30 °C (MBP) | 0,95 |
| MTZ 18 | 4VI | 30,23 | 1,5 Hp | 380 V / 400V 50Hz, 460V 60Hz | 1 1/2" | 1" 3/8" | 1 | +10 °C / -30 °C (MBP) | 0,95 |
| MTZ 22 | 4VI | 38,12 | 1,8 Hp | 380 V / 400V 50Hz, 460V 60Hz | 1 1/2" | 1" 3/8" | 1 | +10 °C / -30 °C (MBP) | 0,95 |
| MTZ 28 | 4VI | 48,06 | 2,3 Hp | 380 V / 400V 50Hz, 460V 60Hz | 1" 5/8" | 1" 1/2" | 1 | +10 °C / -30 °C (MBP) | 0,95 |
| MTZ 32 | 4VI | 53,86 | 2,7 Hp | 380 V / 400V 50Hz, 460V 60Hz | 1 1/4" | 1" 1/2" | 1 | +10 °C / -30 °C (MBP) | 0,95 |
| MTZ 36 | 4VI | 60,47 | 3,0 Hp | 380 V / 400V 50Hz, 460V 60Hz | 1 1/4" | 1" 1/2" | 1 | +10 °C / -30 °C (MBP) | 0,95 |
| MTZ 40 | 4VI | 67,89 | 3,5 Hp | 380 V / 400V 50Hz, 460V 60Hz | 1 1/4" | 1" 1/2" | 1 | +10 °C / -30 °C (MBP) | 1,8 |
| MTZ 44 | 4VI | 76,22 | 3,75 Hp | 380 V / 400V 50Hz, 460V 60Hz | 1 3/4" | 1 1/4" | 2 | +10 °C / -30 °C (MBP) | 1,8 |
| MTZ 50 | 4VI | 85,64 | 4,0 Hp | 380 V / 400V 50Hz, 460V 60Hz | 1 3/4" | 1 1/4" | 2 | +10 °C / -30 °C (MBP) | 1,8 |
| MTZ 56 | 4VI | 96,13 | 4,6 Hp | 380 V / 400V 50Hz, 460V 60Hz | 1 3/4" | 1 1/4" | 2 | +10 °C / -30 °C (MBP) | 1,8 |
| MTZ 64 | 4VI | 107,71 | 5,0 Hp | 380 V / 400V 50Hz, 460V 60Hz | 1 3/4" | 1 1/4" | 2 | +10 °C / -30 °C (MBP) | 1,8 |
| MTZ 72 | 4VI | 120,94 | 6,0 Hp | 380 V / 400V 50Hz, 460V 60Hz | 1 3/4" | 1 1/4" | 2 | +10 °C / -30 °C (MBP) | 1,8 |
| MTZ 80 | 4VI | 135,78 | 6,5 Hp | 380 V / 400V 50Hz, 460V 60Hz | 1 3/4" | 1 1/8" | 2 | +10 °C / -30 °C (MBP) | 1,8 |
| MTZ 100 | 4VI | 171,26 | 8,5 Hp | 380 V / 400V 50Hz, 460V 60Hz | 1 3/4" | 1 1/8" | 4 | +10 °C / -30 °C (MBP) | 3,9 |
| MTZ 125 | 4VI | 215,44 | 10 Hp | 380 V / 400V 50Hz, 460V 60Hz | 1 3/4" | 1 1/8" | 4 | +10 °C / -30 °C (MBP) | 3,9 |
| MTZ 144 | 4VI | 241,87 | 12 Hp | 380 V / 400V 50Hz, 460V 60Hz | 1 3/4" | 1 1/8" | 4 | +10 °C / -30 °C (MBP) | 3,9 |
| MTZ 160 | 4VI | 271,55 | 13 Hp | 380 V / 400V 50Hz, 460V 60Hz | 1 3/4" | 1 1/8" | 4 | +10 °C / -30 °C (MBP) | 3,9 |

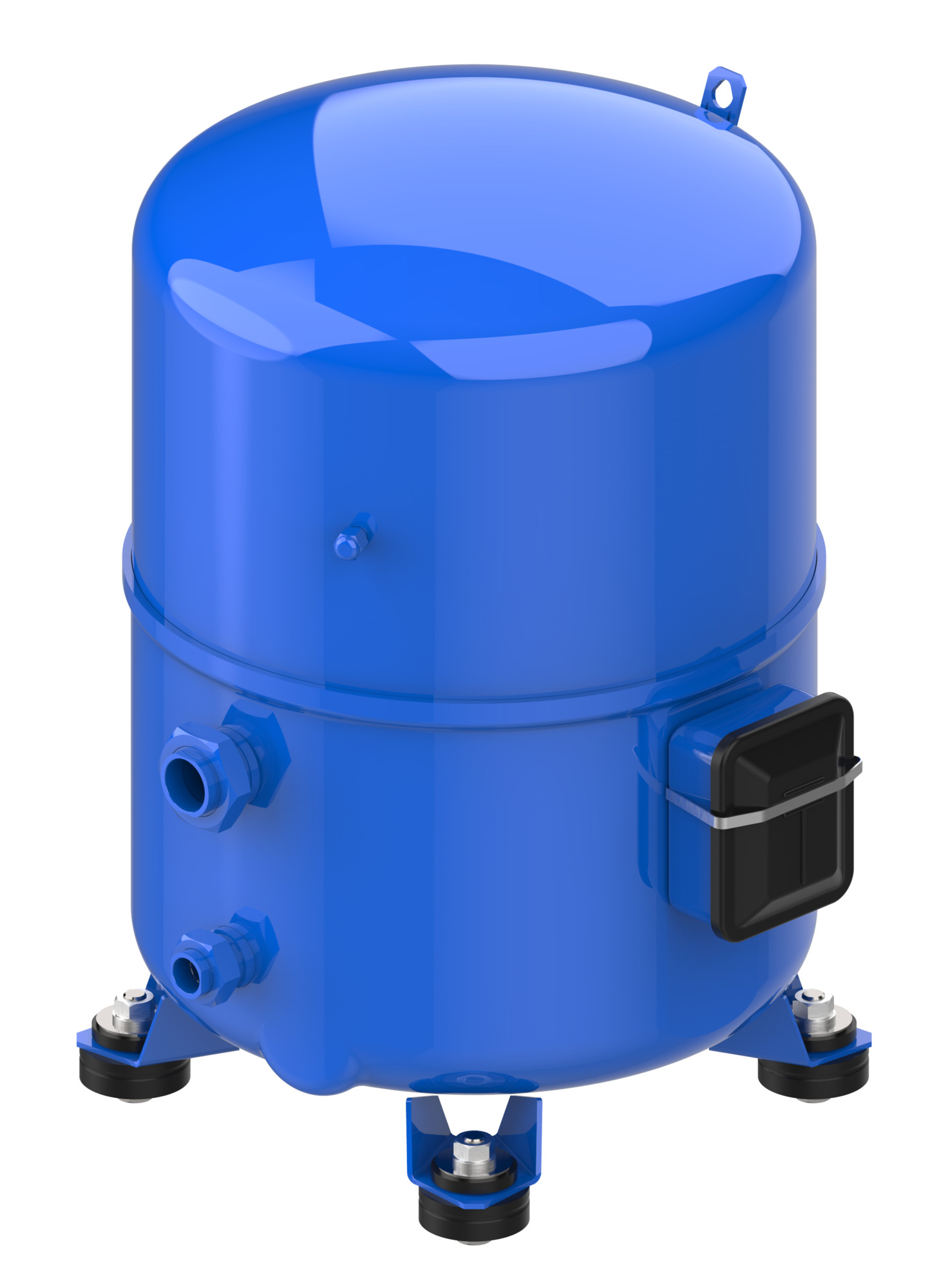

Reciprocating compressor, MTZ144HV4AVE
MTZ144-4VM
Refrigerants: R404A; R407C; R452A; R407A; R134a; R407F; R513A; R448A; R449A, Segment usage: Refrigeration MT, Compressor power supply [V]: 400/3/50 460/3/60, Packing format: Industrial pack
Product details
| Gross weight | 71.5 Kilogram |
| Net weight | 69 Kilogram |
| Volume | 91.728 Liter |
| EAN | 5702428867382 |
| Approval | CE UL UKCA |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| CE evaluated | Yes |
| China RoHS compliance | Yes exceed limitations |
| Colour | Blue |
| Compressor power supply [V] | 400/3/50 460/3/60 |
| Configuration code | Single |
| Connection type | Rotolock |
| Contain batteries | No |
| Cylinder | 4 |
| Description | MTZ144-4 |
| Diameter [mm] | 352 mm |
| Discharge connection height [mm] | 125 mm |
| Discharge connection pipe size [in] | 3/4 in |
| Discharge connection size [in] | 1 1/4 in |
| Drawing number | 8504011e |
| Economizer | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Factory HP [bar] | 25 bar |
| Factory LP [bar] | 25 bar |
| Family | MTZ |
| Fitting remark | (shipped with rotolock version only) |
| Fitting sleeve | ODF |
| Fitting standard | Rotolock |
| Frequency [Hz] | 50/60 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 N-m |
| GP LP torque [Nm] | 15 N-m |
| High Side TS Max | 150 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 1.2 L |
| High value of nominal voltage at 50Hz [V] | 400 V |
| High value of nominal voltage at 60Hz [V] | 460 V |
| High value of voltage range at 50Hz [V] | 460 V |
| High value of voltage range at 60Hz [V] | 506 V |
| In scope of WEEE | No |
| IP protection class | IP54 (with cable gland) |
| Low Side TS Max | 50 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 31 L |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 460 V |
| Low value of voltage range at 50Hz [V] | 340 V |
| Low value of voltage range at 60Hz [V] | 414 V |
| LRA | 130 A |
| Max pressure (PS) - high side | 29.4 bar |
| Max pressure (PS) - low side | 22.6 bar |
| MCC | 36 A |
| Model number | MTZ144HV4AVE |
| Motor protection | Internal overload protector |
| Mounting torque [Nm] | 50 N-m |
| Network power supply [V/Ph/Hz] | 380-415/3/50 460/3/60 |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 3.9 L |
| Oil equalization | 3/8'' flare SAE |
| Oil equalization torque [Nm] | 30 N-m |
| Oil reference | 175PZ |
| Packaging height [mm] | 650 mm |
| Packaging length [mm] | 1150 mm |
| Packaging weight [Kg] | 446 kg |
| Packaging width [mm] | 800 mm |
| Packing format | Industrial pack |
| Packing quantity | 6 |
| Phase | 3 |
| Power connections | Screw connectors 10-32 UNF x 9.5 |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor MTZ |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 10 kg |
| Refrigerants | R134a R404A R407A R407C R407F R448A R449A R452A R513A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| SCIP dossier no. | 6971587b-85b6-4808-886d-274e8a9998d4 |
| Segment usage | Refrigeration MT |
| Shipped fittings | Suction and discharge solder sleeves, rotolock nuts and gaskets |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 233 mm |
| Suction connection material | - |
| Suction connection pipe size [in] | 1 1/8 in |
| Suction connection size [in] | 1 3/4 in |
| Swept volume [cm3] | 241.87 cm³ |
| Technology | Reciprocating |
| Test dif [bar] [Max] | 30 bar |
| Test HP [bar] [Max] | 30 bar |
| Test LP [bar] [Max] | 25 bar |
| Torque earth [Nm] | 3 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 540 mm |
| Type | MTZ144 |
| U.S. EPA label | For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only. |
| UL evaluated | Yes |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 1.15 Ohm |
