| Model | Kod No | Btu 50 Hz | Disp. CC | Nominal Güç | Voltaj | Emme | Basma | Çalışma Rejimi | Yağ Miktarı (Lt) |
|---|---|---|---|---|---|---|---|---|---|
| HRH 036 U5LP6 | 121L1176 | 30.000 | 34,74 | 3 Hp | 380 V / 400V 50Hz, 460V 60Hz | 3/4" | 1/2" | +15°C / -20°C (MBP) | 1,06 |
| HRH 036 U4LP6 | 121L1201 | 30.000 | 34,74 | 3 Hp | 380 V / 400V 50Hz, 460V 60Hz | 3/4" | 1/2" | +15°C / -20°C (MBP) | 1,06 |
| HRH 040 U4LP6 | 121L1211 | 33.300 | 39,64 | 3,3 Hp | 380 V / 400V 50Hz, 460V 60Hz | 7/8" | 1/2" | +15°C / -20°C (MBP) | 1,33 |
| HRH 044 U4LP6 | 121L1361 | 36.600 | 42,61 | 3,7 Hp | 380 V / 400V 50Hz, 460V 60Hz | 7/8" | 1/2" | +15°C / -20°C (MBP) | 1,57 |
| HRH 054 U4LP6 | 121L1376 | 45.000 | 52,11 | 4,5 Hp | 380 V / 400V 50Hz, 460V 60Hz | 7/8" | 1/2" | +15°C / -20°C (MBP) | 1,57 |
| HLH 061 U4LP6 | 121L2052 | 50.800 | 57,78 | 5,1 Hp | 380 V / 400V 50Hz, 460V 60Hz | 7/8" | 1/2" | +15°C / -20°C (MBP) | 1,57 |
| HLJ 072 U4LP6 | 121L1396 | 60.000 | 67,97 | 6 Hp | 380 V / 400V 50Hz, 460V 60Hz | 7/8" | 1/2" | +15°C / -20°C (MBP) | 1,57 |
| HLJ 083 U4LP6 | 121L1401 | 70.000 | 78,08 | 7 Hp | 380 V / 400V 50Hz, 460V 60Hz | 7/8" | 1/2" | +15°C / -20°C (MBP) | 1,57 |

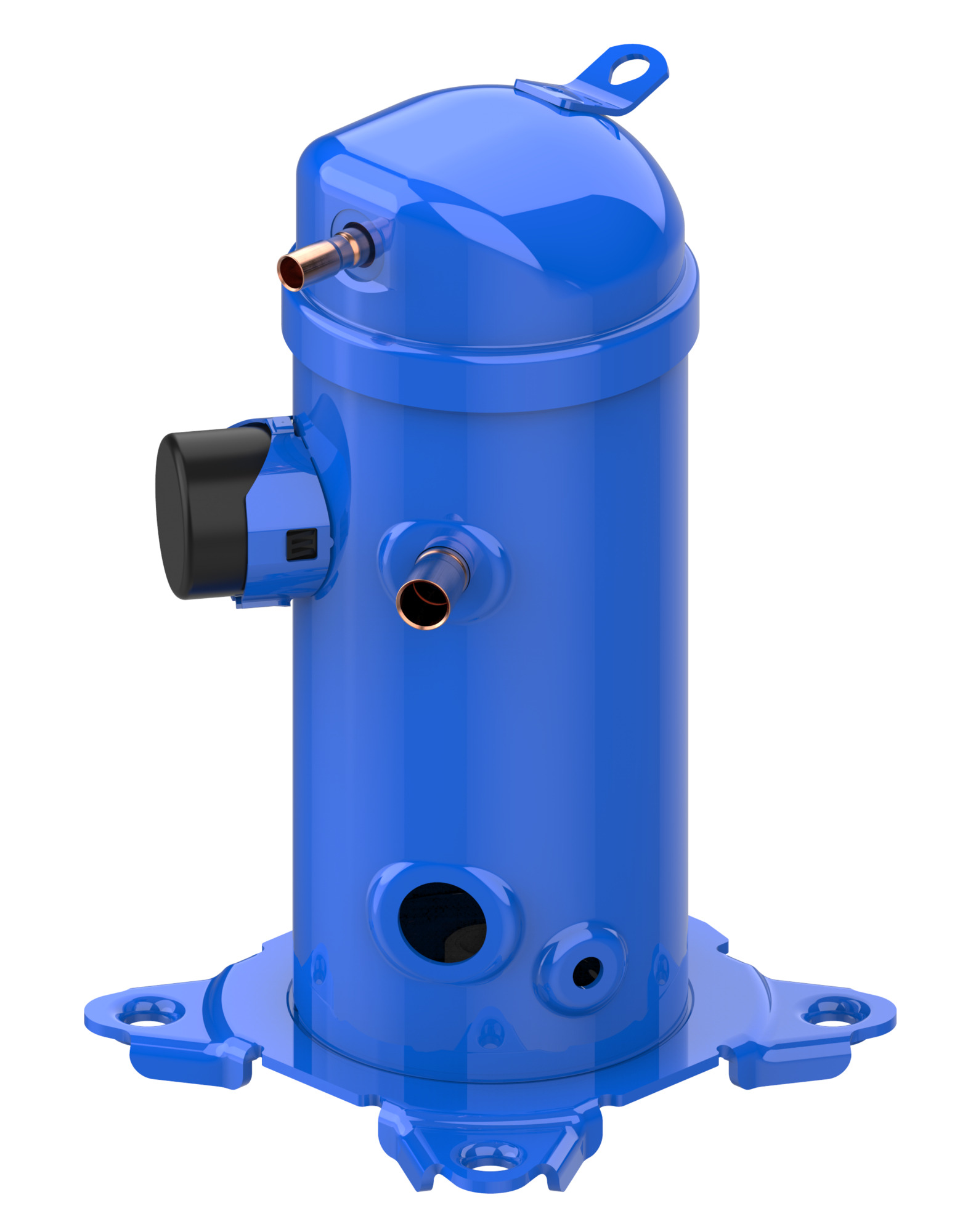

Scroll compressor, HRH036U5LP6
121L1176
Refrigerants: R410A, Segment usage: Air conditioning, Compressor power supply [V]: 220-240/1/50, Packing format: Single pack
Product details
| Gross weight | 34.67 Kilogram |
| Net weight | 30.67 Kilogram |
| Volume | 0.1 Cubic meter |
| EAN | 5702424064228 |
| Approval | CE UL UKCA |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 1.51 |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Capacity of capacitor A | 70 µF |
| Capacity of capacitor B | 145-175 µF |
| CE evaluated | Yes |
| China RoHS compliance | Yes exceed limitations |
| Colour | Blue |
| Compressor power supply [V] | 220-240/1/50 |
| Configuration code | Single |
| Connection type | Brazed |
| Contain batteries | No |
| Description | HRH036U5 |
| Diameter [mm] | 165 mm |
| Discharge connection height [mm] | 379 mm |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |

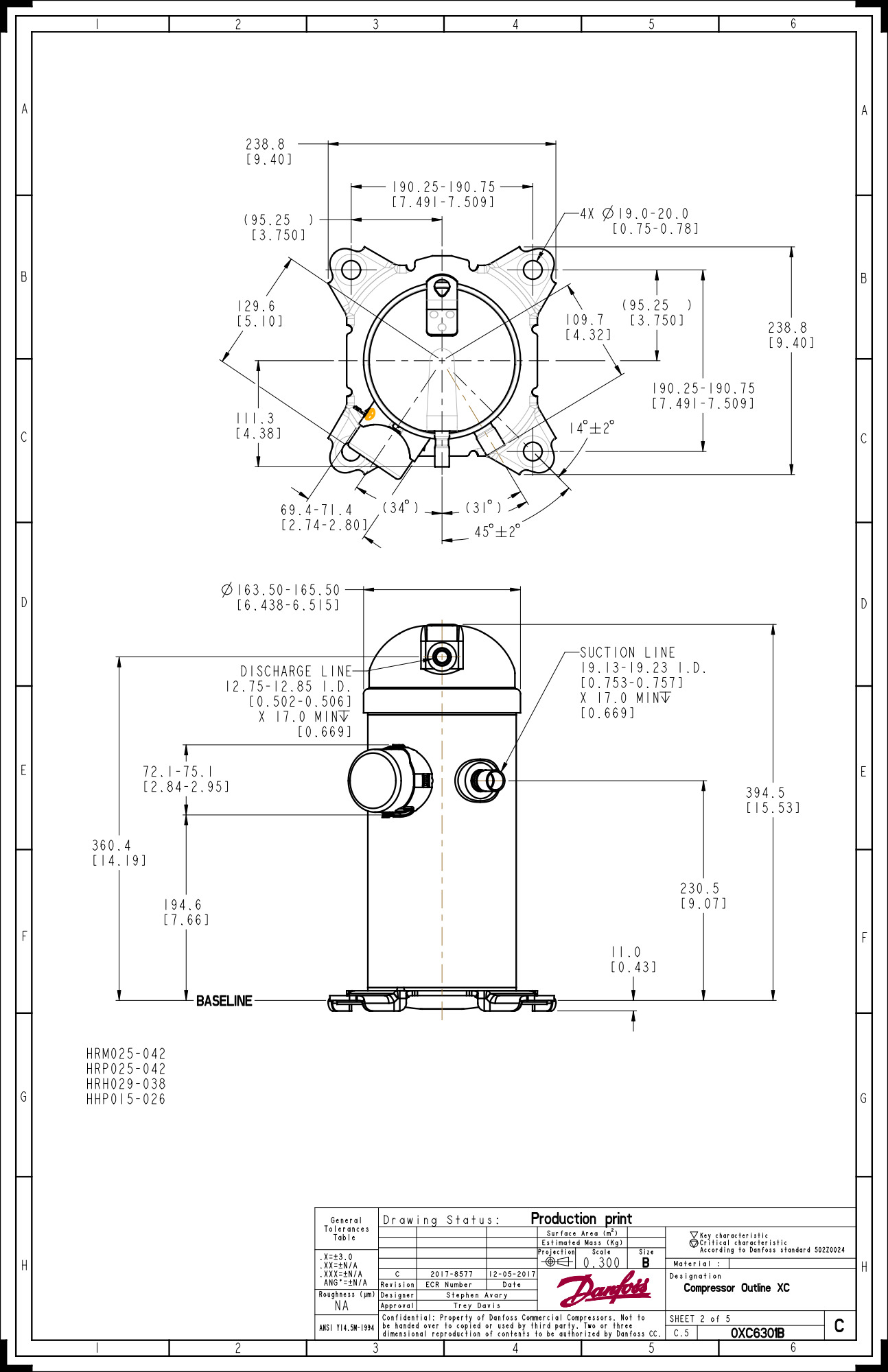

| Drawing number | 0XC6301B-2 |
| Economizer | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 7(c)-I 6(a) 6(a)-I 6(c) 7(a) 8(b) |
| Family | HRH |
| Fitting standard | ODF |
| Frequency [Hz] | 50 |
| Gauge port HP | None |
| Gauge port LP | None |
| Gaz equalization | None |
| Glass mounting | None |
| High value of nominal voltage at 50Hz [V] | 230 V |
| High value of voltage range at 50Hz [V] | 253 V |
| In scope of WEEE | No |
| IP protection class | IP22 |
| Length [mm] | 239 mm |
| Low value of nominal voltage at 50Hz [V] | 230 V |
| Low value of voltage range at 50Hz [V] | 207 V |
| LRA | 97 A |
| Main winding resistance for single-phase compressors [Ohm] | 0.69 |
| Max pressure (PS) - high side | 46.1 bar |
| Max pressure (PS) - low side | 31.1 bar |
| MCC | 25.5 A |
| Model number | HRH036U5LP6 |
| Motor protection | Internal overload protector |
| Network power supply [V/Ph/Hz] | 220-240/1/50 |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.06 L |
| Oil equalization | None |
| Oil reference | 320HV |
| Oil type | PVE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 1 |
| Power connections | Spade |
| Product group | Hermetic compressors |
| Product Name Description | Scroll compressor HRH |
| Refrigerant charge [kg] [Max] | 3.63 kg |
| Refrigerants | R410A |
| RLA | 16.3 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 250 mm |
| Suction connection material | - |
| Suction connection pipe size [in] | 3/4 in |
| Suction connection size [in] | 3/4 in |
| Swept volume [cm3] | 34.74 cm³ |
| Technology | Scroll |
| Total height [mm] | 413 mm |
| Type | HRH036 |
| U.S. EPA label | For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only. |
| UL evaluated | Yes |
| Viscosity [cP] | 68 cP |
| Width [mm] | 239 mm |
