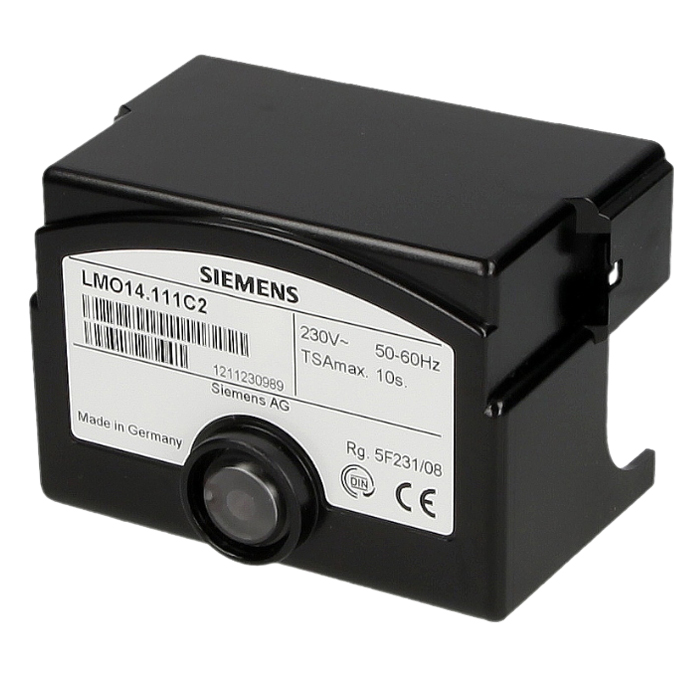

SIEMENS LMO14.111C2 BURNER AUTOMATIC

General Description:
The SIEMENS LMO14.111C2 is a microprocessor-based burner control unit designed for low and medium capacity oil or gas burners. It ensures safe ignition and flame monitoring and complies with EN 230 safety standards.

Technical Specifications:

• Model: LMO14.111C2

• Voltage: 230 V AC, 50 Hz

• Capacity: For oil burners up to 30 kg/h

• Control Times:

  • Pre-purge time: 13 s

  • Safety time: 10 s

• Flame Monitoring: Via ionization electrode or photocell (QRB...)

• Reset Function: Manual reset

• Mounting: DIN rail or screw-mounted panel installation

• Operating Temperature: -20 °C ... +60 °C

• Protection Class: IP40

Applications:

• Residential and commercial oil burners

• Industrial heating systems

• Boiler units

Advantages:

• Safe operation with microprocessor control

• Compact design

• High safety shutdown functions

• Fault indication for easy maintenance
