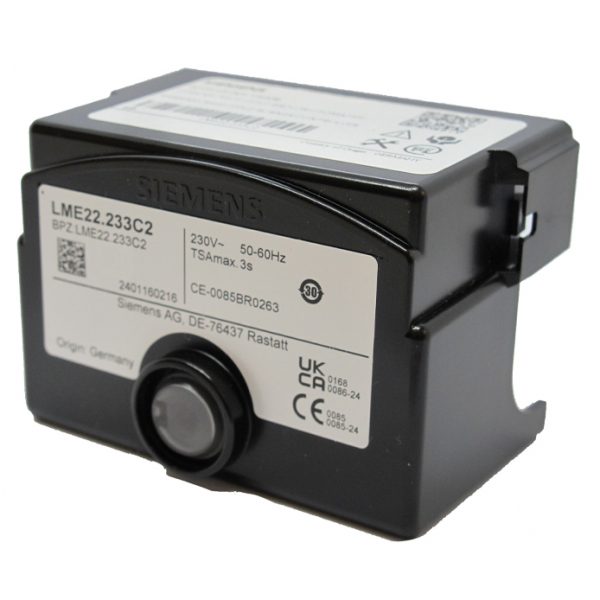

SIEMENS LME22.233C2 BURNER AUTOMATIC

General Description:
The SIEMENS LME22.233C2 is a microprocessor-based burner control unit designed for low and medium capacity fan-assisted gas burners. It offers secure ignition, flame supervision, and fault diagnostics. Compliant with EN 298 standard.

Technical Specifications:

• Model: LME22.233C2

• Power Supply: 230 V AC, 50/60 Hz

• Burner Type: Gas burners with fan assistance

• Pre-Purge Time: 20 seconds

• Safety Time: 3 seconds

• Flame Monitoring: By ionization electrode or QRB-type photocell

• Reset: Manual

• Mounting Type: Panel mounting with AGK11 socket

• Operating Temperature: -20 °C to +60 °C

• Protection Class: IP40

• Status Display: LED indication for fault and operating states

Applications:

• Residential and commercial gas boilers

• Fan-assisted burner systems

• Gas-fired hot air generators

• Industrial heating systems

Advantages:

• Compact and reliable design

• Simple installation and maintenance

• Fast error diagnostics via LED

• Full compliance with EN 298
