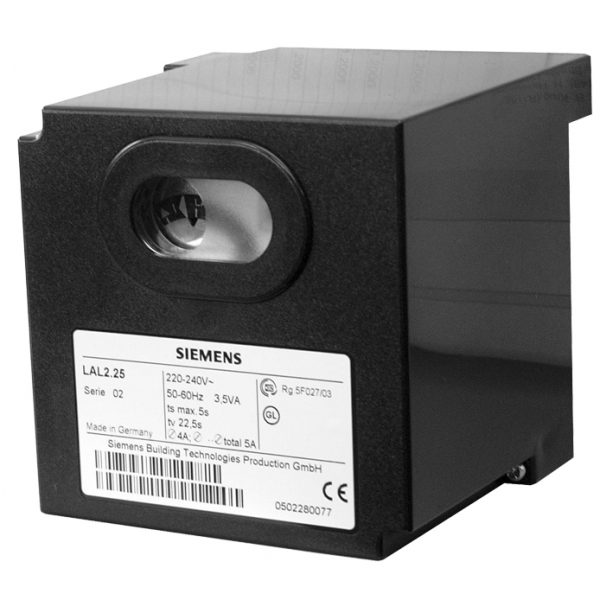

SIEMENS LAL2.25 BURNER AUTOMATIC

General Description:
The SIEMENS LAL2.25 is an electromechanical control unit designed for medium and high-capacity oil and gas burners. It ensures safe burner startup, flame monitoring, and fault management. It complies with EN 298 standards and is suitable for industrial applications.

Technical Specifications:

• Model: LAL2.25

• Power Supply: 220–240 V AC, 50/60 Hz

• Burner Type: Medium and high-capacity oil/gas burners

• Timing Functions:

  • Pre-purge time: 17 seconds

  • Safety time (TS): 3 seconds

  • Flame establishment time: 2 seconds

• Flame Monitoring: Ionization probe or photocell (QRB, RAR)

• Reset: Manual

• Protection Class: IP40

• Operating Temperature: -20 °C to +60 °C

• Mounting: Panel mounting with AGK11 socket

• Additional Features:

  • LED fault diagnosis

  • Integrated mechanical timer

Applications:

• Industrial burner systems

• Boiler rooms and large heating applications

• Process heating systems

Advantages:

• Safe and stable operation

• Long-lasting, robust construction

• Quick fault detection with LED indicator

• Easy installation and maintenance
